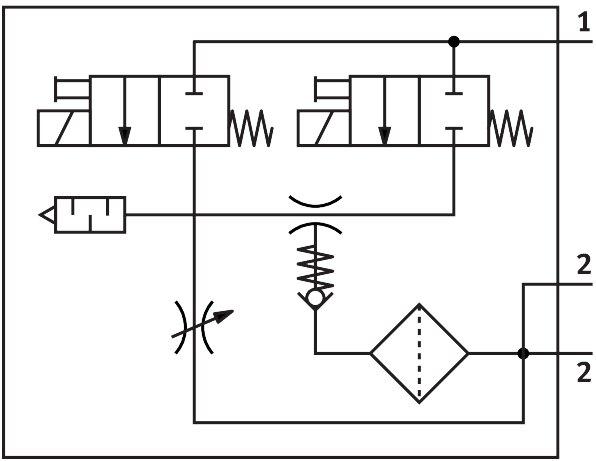

Reference imageConfirm configuration by manufacturer part number.
Festo
162510
Vacuum generator VADMI-200
The Festo 162510 is an industrial component featuring a 2 mm Laval nozzle width, a 22 mm width dimension, and a closed muffler construction type for any mounting position. This unit delivers high vacuum ejector characteristics with a 40 µm grade of filtration, non-detenting manual override, and a closed valve function operating at 0.2 MPa to 0.8 MPa. Integrated functions include an electric ejector pulse valve, flow control valve, electric on-off valve, filter, and check valve, operating on a 21.6 V to 26.4 V DC voltage range at a 100% duty cycle with c UL us recognition. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 162510
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 162510.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 2 mm
- Width dimension
- 22 mm
- Muffler construction type
- Closed
- Mounting position
- Any
- Ejector characteristics
- High vacuum
- Grade of ltration
- 40 µm
- Manual override
- Non-detenting
- Integrated function
- Ejector pulse valve, electric | Flow control valve | Electric on-off valve | Filter | Check valve
- Valve function
- Closed
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Max. vacuum
- 85 %
- Nominal operating pressure
- 0.6 MPa | 6 bar | 87 psi
- Air supply time at nominal operating pressure with ejector pulse
- 0.15 s
- DC operating voltage range
- 21.6 V...26.4 V
- Duty cycle
- 100%
- Certication
- c UL us - recognized (OL)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- 0 °C...60 °C
- Degree of protection
- IP65
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 350 g
- Electrical connection
- Plug
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 162510. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
