Name: Festo 162511 Vacuum generator VADMI-300
Brand: Festo

Vacuum generator VADMI-300

The Festo part number 162511 is an industrial component featuring a 3 mm Laval nozzle, a 22 mm width dimension, and a closed muffler construction type supporting any mounting position. This high-vacuum ejector integrates an electric ejector pulse valve, flow control valve, electric on-off valve, filter, and check valve, operating within a pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar, 29 psi to 116 psi) at a nominal pressure of 0.6 MPa (6 bar, 87 psi). Powered by a DC operating voltage range of 21.6 V to 26.4 V with a 100% duty cycle, the unit includes non-detenting manual override, a 40 µm filtration grade, and c UL us - recognized (OL) certification for compressed air media per ISO 8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements for an official quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 162511
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 162511.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width of Laval nozzle: 3 mm
Width dimension: 22 mm
Muﬄer construction type: Closed
Mounting position: Any
Ejector characteristics: High vacuum
Grade of ltration: 40 µm
Manual override: Non-detenting

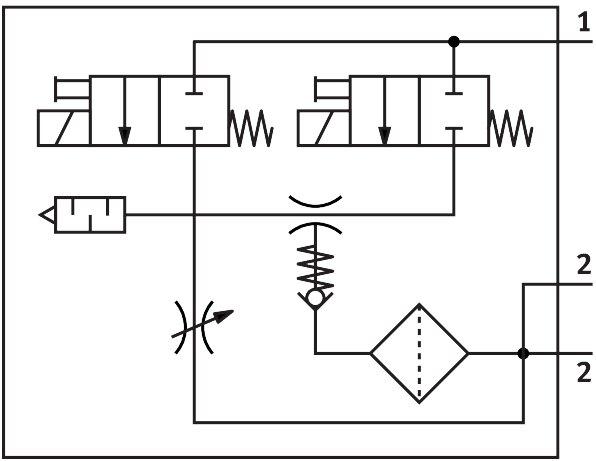

Integrated function: Ejector pulse valve, electric | Flow control valve | Electric on-oﬀ valve | Filter | Check valve
Valve function: Closed
Operating pressure: 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
Max. vacuum: 85 %
Nominal operating pressure: 0.6 MPa | 6 bar | 87 psi
Air supply time at nominal operating pressure with ejector pulse: 0.2 s
DC operating voltage range: 21.6 V...26.4 V
Duty cycle: 100%
Certication: c UL us - recognized (OL)
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication not possible
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Temperature of medium: 0 °C...60 °C
Degree of protection: IP65
Ambient temperature: 0 °C...60 °C
Product weight: 370 g
Electrical connection: Plug
