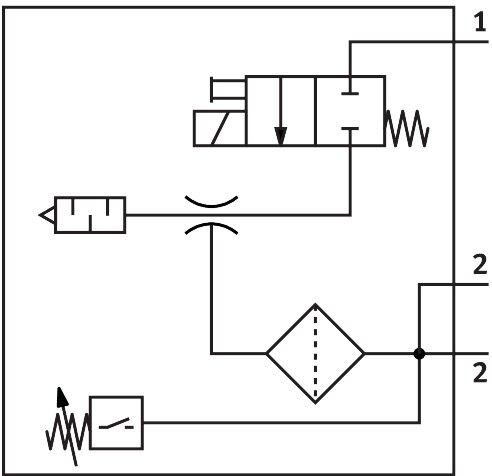

Reference imageConfirm configuration by manufacturer part number.
Festo
162513
Vacuum generator VADM-45-N
The Festo 162513 is an industrial component featuring a 0.45 mm nominal width Laval nozzle, a 10 mm width dimension, a closed muffler construction type, and any mounting position. This unit includes integrated functions comprising an electric on-off valve, a filter, and a vacuum switch with a piezoresistive measuring principle for relative pressure, an N.O. contact switching element function, a threshold value comparator switching function, a closed valve function, reverse polarity protection for all electrical connections, an LED display type, and optical switching status indication. Operational parameters include high vacuum ejector characteristics, a 40 µm grade of filtration, a non-detenting manual override, potentiometer setting options, a setting range hysteresis of -50 kPa to -5 kPa (-0.5 bar to -0.05 bar or -7.25 psi to -0.725 psi), and a setting range threshold value of -90 kPa to 0 kPa (-0.9 bar to 0 bar). Submit the exact part number, quantity, and application requirements to receive a formal price quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 162513
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 162513.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 0.45 mm
- Width dimension
- 10 mm
- Muffler construction type
- Closed
- Mounting position
- Any
- Ejector characteristics
- High vacuum
- Grade of ltration
- 40 µm
- Manual override
- Non-detenting
- Integrated function
- Electric on-off valve | Filter | Vacuum switch
- Measured variable
- Relative pressure
- Measuring principle
- Piezoresistive
- Switching element function
- N.O. contact
- Switching function
- Threshold value comparator
- Valve function
- Closed
- Reverse polarity protection
- for all electrical connections
- Display type
- LED
- Setting range hysteresis
- -50 kPa...-5 kPa | -0.5 bar...-0.05 bar
- Hysteresis setting range
- -7.25 psi...-0.725 psi
- Setting options
- Potentiometer
- Switching status indication
- Optical
- Setting range threshold value
- -90 kPa...0 kPa | -0.9 bar...0 bar
- Threshold value setting range
- -13.05 psi...0 psi
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar | 21.75 psi...116 psi
- Max. vacuum
- 85 %
- Nominal operating pressure
- 0.6 MPa | 6 bar | 87 psi
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 162513. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
