Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

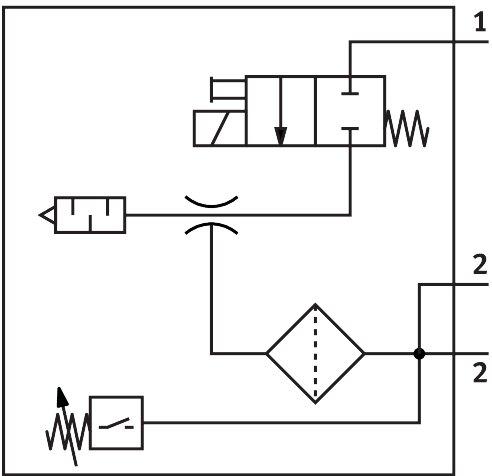

Reference imageConfirm configuration by manufacturer part number.
Festo
162518
Vacuum generator VADM-140-P
The Festo 162518 industrial component features a 1.4 mm nominal width Laval nozzle, a 22 mm width dimension, a closed muffler construction type, and supports any mounting position with high vacuum ejector characteristics. It integrates an electric on-off valve, a filter with a 40 µm grade of filtration, and a piezoresistive vacuum switch measuring relative pressure with reverse polarity protection for all electrical connections. The unit includes a non-detenting manual override, an LED display, optical switching status indication, a threshold value setting range of -90 kPa to 0 kPa (-0.9 bar to 0 bar), and a potentiometer for setting hysteresis between -50 kPa and -5 kPa (-0.5 bar to -0.05 bar or -7.25 psi to -0.725 psi) utilizing an N.O. contact threshold value comparator. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 162518
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 162518.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 1.4 mm
- Width dimension
- 22 mm
- Muffler construction type
- Closed
- Mounting position
- Any
- Ejector characteristics
- High vacuum
- Grade of ltration
- 40 µm
- Manual override
- Non-detenting
- Integrated function
- Electric on-off valve | Filter | Vacuum switch
- Measured variable
- Relative pressure
- Measuring principle
- Piezoresistive
- Switching element function
- N.O. contact
- Switching function
- Threshold value comparator
- Valve function
- Closed
- Reverse polarity protection
- for all electrical connections
- Display type
- LED
- Setting range hysteresis
- -50 kPa...-5 kPa | -0.5 bar...-0.05 bar
- Hysteresis setting range
- -7.25 psi...-0.725 psi
- Setting options
- Potentiometer
- Switching status indication
- Optical
- Setting range threshold value
- -90 kPa...0 kPa | -0.9 bar...0 bar
- Threshold value setting range
- -13.05 psi...0 psi
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Max. vacuum
- 85 %
- Nominal operating pressure
- 0.6 MPa | 6 bar | 87 psi
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 162518. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
