Festo
162520

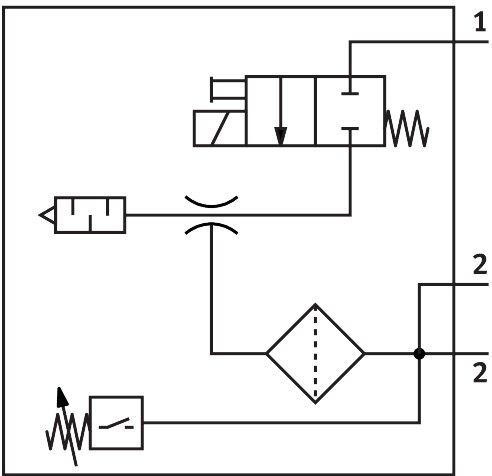

Vacuum generator VADM-200-P
The Festo 162520 is an industrial component featuring a 2 mm nominal width Laval nozzle, a 22 mm width dimension, a closed muffler construction type, and any mounting position with high vacuum ejector characteristics. It integrates an electric on-off valve, a 40 µm grade of filtration, and a piezoresistive vacuum switch measuring relative pressure with a closed valve function, N.O. contact switching element function, threshold value comparator switching function, and LED display type. Additional technical features include non-detenting manual override, reverse polarity protection for all electrical connections, optical switching status indication, potentiometer setting options, a relative pressure setting range of -90 kPa to 0 kPa (-0.9 bar to 0 bar), and a hysteresis setting range of -50 kPa to -5 kPa (-0.5 bar to -0.05 bar or -7.25 psi to -0.725 psi). Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 162520
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 162520.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 2 mm
- Width dimension
- 22 mm
- Muffler construction type
- Closed
- Mounting position
- Any
- Ejector characteristics
- High vacuum
- Grade of ltration
- 40 µm
- Manual override
- Non-detenting
- Integrated function
- Electric on-off valve | Filter | Vacuum switch
- Measured variable
- Relative pressure
- Measuring principle
- Piezoresistive
- Switching element function
- N.O. contact
- Switching function
- Threshold value comparator
- Valve function
- Closed
- Reverse polarity protection
- for all electrical connections
- Display type
- LED
- Setting range hysteresis
- -50 kPa...-5 kPa | -0.5 bar...-0.05 bar
- Hysteresis setting range
- -7.25 psi...-0.725 psi
- Setting options
- Potentiometer
- Switching status indication
- Optical
- Setting range threshold value
- -90 kPa...0 kPa | -0.9 bar...0 bar
- Threshold value setting range
- -13.05 psi...0 psi
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Max. vacuum
- 85 %
- Nominal operating pressure
- 0.6 MPa | 6 bar | 87 psi
