Festo
162521

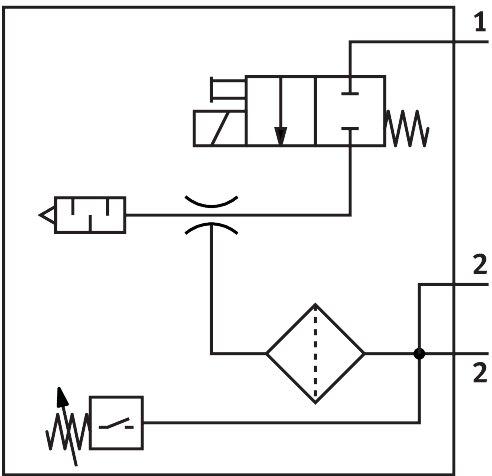

Vacuum generator VADM-200-N
The Festo 162521 industrial component features a 2 mm nominal width Laval nozzle, a 22 mm width dimension, and a closed muffler construction type supporting any mounting position. This high-vacuum ejector integrates an electric on-off valve, a 40 µm grade filter, and a piezoresistive vacuum switch measuring relative pressure with a closed valve function, N.O. contact switching element function, and threshold value comparator switching function. It incorporates reverse polarity protection across all electrical connections, an LED display, optical switching status indication, non-detenting manual override, and potentiometer setting options providing a threshold value setting range of -90 kPa to 0 kPa and a hysteresis setting range of -50 kPa to -5 kPa. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 162521
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 162521.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 2 mm
- Width dimension
- 22 mm
- Muffler construction type
- Closed
- Mounting position
- Any
- Ejector characteristics
- High vacuum
- Grade of ltration
- 40 µm
- Manual override
- Non-detenting
- Integrated function
- Electric on-off valve | Filter | Vacuum switch
- Measured variable
- Relative pressure
- Measuring principle
- Piezoresistive
- Switching element function
- N.O. contact
- Switching function
- Threshold value comparator
- Valve function
- Closed
- Reverse polarity protection
- for all electrical connections
- Display type
- LED
- Setting range hysteresis
- -50 kPa...-5 kPa | -0.5 bar...-0.05 bar
- Hysteresis setting range
- -7.25 psi...-0.725 psi
- Setting options
- Potentiometer
- Switching status indication
- Optical
- Setting range threshold value
- -90 kPa...0 kPa | -0.9 bar...0 bar
- Threshold value setting range
- -13.05 psi...0 psi
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Max. vacuum
- 85 %
- Nominal operating pressure
- 0.6 MPa | 6 bar | 87 psi
