Festo
162524

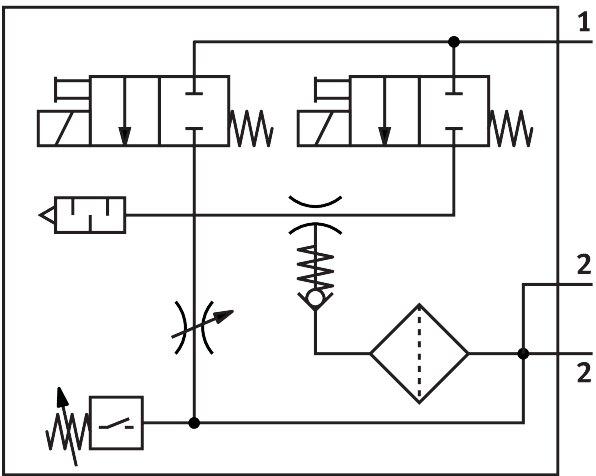

Vacuum generator VADMI-45-P
The Festo 162524 is an industrial component featuring a 0.45 mm nominal width Laval nozzle, a 10 mm width dimension, a closed muffler construction type, and any mounting position with high vacuum ejector characteristics. This part incorporates a 40 µm grade of filtration, a non-detenting manual override, and integrated functions including an electric ejector pulse valve, flow control valve, electric on-off valve, filter, check valve, and vacuum switch utilizing a piezoresistive measuring principle for relative pressure with a threshold value comparator switching function, N.O. contact switching element function, LED display, optical switching status indication, potentiometer setting options, and reverse polarity protection for all electrical connections. It includes a setting range hysteresis of -50 kPa to -5 kPa (-0.5 bar to -0.05 bar, or -7.25 psi to -0.725 psi) and a setting range threshold value of -90 kPa to 0 kPa (-0.9 bar to 0 bar). Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 162524
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 162524.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 0.45 mm
- Width dimension
- 10 mm
- Muffler construction type
- Closed
- Mounting position
- Any
- Ejector characteristics
- High vacuum
- Grade of ltration
- 40 µm
- Manual override
- Non-detenting
- Integrated function
- Ejector pulse valve, electric | Flow control valve | Electric on-off valve | Filter | Check valve | Vacuum switch
- Measured variable
- Relative pressure
- Measuring principle
- Piezoresistive
- Switching element function
- N.O. contact
- Switching function
- Threshold value comparator
- Valve function
- Closed
- Reverse polarity protection
- for all electrical connections
- Display type
- LED
- Setting range hysteresis
- -50 kPa...-5 kPa | -0.5 bar...-0.05 bar
- Hysteresis setting range
- -7.25 psi...-0.725 psi
- Setting options
- Potentiometer
- Switching status indication
- Optical
- Setting range threshold value
- -90 kPa...0 kPa | -0.9 bar...0 bar
- Threshold value setting range
- -13.05 psi...0 psi
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar | 21.75 psi...116 psi
- Max. vacuum
- 85 %
- Nominal operating pressure
- 0.6 MPa | 6 bar
