Festo
162534

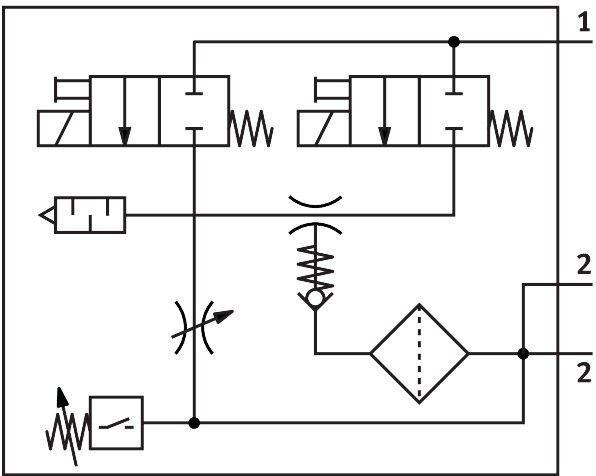

Vacuum generator VADMI-300-P
The Festo part number 162534 is an industrial component featuring a 3 mm nominal width Laval nozzle, a 22 mm width dimension, a closed muffler construction type, and an any mounting position with high vacuum ejector characteristics. This unit integrates an electric ejector pulse valve, flow control valve, electric on-off valve, filter, check valve, and a vacuum switch utilizing a piezoresistive measuring principle for relative pressure with a piezoresistive measuring principle, N.O. contact switching element function, threshold value comparator switching function, closed valve function, and LED display with optical switching status indication. Additional features include 40 µm filtration grade, non-detenting manual override, reverse polarity protection for all electrical connections, potentiometer setting options, threshold value setting range of -90 kPa to 0 kPa (-0.9 bar to 0 bar), and a hysteresis setting range of -50 kPa to -5 kPa (-0.5 bar to -0.05 bar or -7.25 psi to -0.725 psi). Submit the exact part number, quantity, and application requirements to receive a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 162534
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 162534.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 3 mm
- Width dimension
- 22 mm
- Muffler construction type
- Closed
- Mounting position
- Any
- Ejector characteristics
- High vacuum
- Grade of ltration
- 40 µm
- Manual override
- Non-detenting
- Integrated function
- Ejector pulse valve, electric | Flow control valve | Electric on-off valve | Filter | Check valve | Vacuum switch
- Measured variable
- Relative pressure
- Measuring principle
- Piezoresistive
- Switching element function
- N.O. contact
- Switching function
- Threshold value comparator
- Valve function
- Closed
- Reverse polarity protection
- for all electrical connections
- Display type
- LED
- Setting range hysteresis
- -50 kPa...-5 kPa | -0.5 bar...-0.05 bar
- Hysteresis setting range
- -7.25 psi...-0.725 psi
- Setting options
- Potentiometer
- Switching status indication
- Optical
- Setting range threshold value
- -90 kPa...0 kPa | -0.9 bar...0 bar
- Threshold value setting range
- -13.05 psi...0 psi
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Max. vacuum
- 85 %
- Nominal operating pressure
- 0.6 MPa | 6 bar
