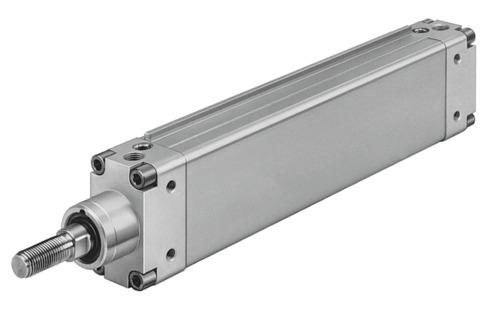

Name: Festo 16259 Flat cylinder DZH-2"- -PPV-A
Brand: Festo

Flat cylinder DZH-2"- -PPV-A

The Festo 16259 is a double-acting industrial component featuring a 2-inch piston diameter, an oval piston providing an anti-torsion guide with a maximum rotation angle of +/- 0.45 degrees, and an adjustable pneumatic cushioning at both ends with a 23 mm cushioning length. Engineered for any mounting position, this unit operates within a pressure range of 0.5 bar to 10 bar utilizing compressed air per ISO 8573-1:2010 [7:4:4] and supports a stroke length spanning from 0.04 inches to 40 inches. It delivers a theoretical force of 989 N retracting and 1178 N advancing at 6 bar, while exhibiting a moderate corrosion resistance class (CRC 2) and an ambient temperature range of -20 °C to 80 °C. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 16259
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 16259.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 0.04 in...40 in
Piston diameter: 2"
Max. angle of rotation of the piston rod +/-: 0.45 deg
Cushioning: Pneumatic cushioning, adjustable at both ends
Mounting position: Any
Mode of operation: Double-acting
Structural design: Piston | Piston rod
Position sensing: For proximity sensor
Protection against torsion/guide: Oval piston
Operating pressure: 0.05 MPa...1 MPa | 0.5 bar...10 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Ambient temperature: -20 °C...80 °C
Cushioning length: 23 mm
Max. torque for protection against rotation: 1.7 Nm
Theoretical force at 6 bar, retracting: 989 N
Theoretical force at 6 bar, advancing: 1178 N
Additional weight per 10 mm stroke: 60 g
Basic weight with 0 mm stroke: 1200 g
Type of mounting: Optionally: | With internal thread | With accessories
Pneumatic connection: 1/4 NPT
Note on materials: RoHS-compliant
Cover material: Aluminum
Seals material: TPE-U(PU)
Housing material: Aluminum
Piston rod material: High-alloy steel
