Festo
16260

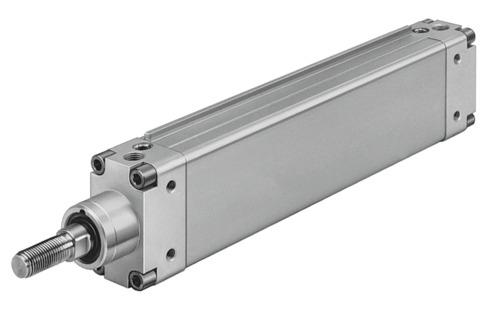

Flat cylinder DZH-2 1/2"- -PPV-A
The Festo 16260 is a double-acting industrial component featuring a 2 1/2" piston diameter, an adjustable stroke ranging from 0.04 in to 40 in, and an oval piston providing torsion protection up to 2 Nm with a maximum rotation angle of +/- 0.4 degrees. Built with a piston and piston rod structural design, it incorporates adjustable pneumatic cushioning at both ends with a 23 mm cushioning length, operates at pressures between 0.06 MPa and 1 MPa using compressed air per ISO 8573-1:2010 [7:4:4], and delivers theoretical forces of 989 N retracting and 1178 N advancing at 6 bar. This unit supports any mounting position, includes position sensing for proximity sensors, achieves a moderate corrosion resistance class (CRC 2) with VDMA24364-B2-L LABS conformity, and functions within an ambient temperature range of -20 °C to 80 °C while adding 80 g of weight per 10 mm of stroke. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 16260
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 16260.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 0.04 in...40 in
- Piston diameter
- 2 1/2"
- Max. angle of rotation of the piston rod +/-
- 0.4 deg
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod
- Position sensing
- For proximity sensor
- Protection against torsion/guide
- Oval piston
- Operating pressure
- 0.06 MPa...1 MPa | 0.6 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Cushioning length
- 23 mm
- Max. torque for protection against rotation
- 2 Nm
- Theoretical force at 6 bar, retracting
- 989 N
- Theoretical force at 6 bar, advancing
- 1178 N
- Additional weight per 10 mm stroke
- 80 g
- Basic weight with 0 mm stroke
- 1690 g
- Type of mounting
- Optionally: | With internal thread | With accessories
- Pneumatic connection
- 3/8 NPT
- Note on materials
- RoHS-compliant
- Cover material
- Aluminum
- Seals material
- TPE-U(PU)
- Housing material
- Aluminum
- Piston rod material
- High-alloy steel
