Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

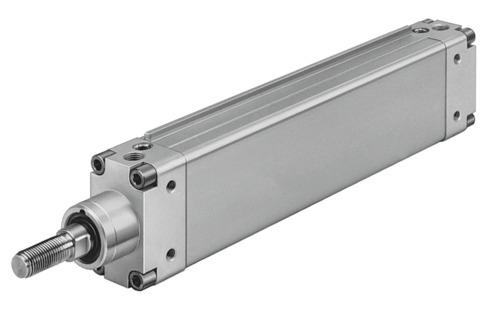

Reference imageConfirm configuration by manufacturer part number.
Festo
16262
Flat cylinder DZH-1 5/8"- -PPV-A-S6
The Festo 16262 is a double-acting industrial component featuring a 1 5/8" piston diameter, an adjustable stroke range from 0.04 in to 40 in, and an oval piston providing protection against torsion with a maximum torque of 1.2 Nm and a $\pm$1.4 deg maximum angle of rotation of the piston rod. Built with heat-resistant seals for temperatures up to 120\u00b0C, this unit operates at pressures between 0.06 MPa and 1 MPa (0.6 bar to 10 bar) and delivers theoretical forces of 633 N retracting and 754 N advancing at 6 bar using compressed air per ISO 8573-1:2010 [7:4:4]. It incorporates adjustable pneumatic cushioning at both ends with a 21 mm cushioning length, position sensing for a proximity sensor, and any mounting position while withstanding ambient temperatures from -20 \u00b0C to 150 \u00b0C and moderate corrosion stress (CRC 2). Submit part number 16262, required quantity, and application parameters to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 16262
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 16262.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 0.04 in...40 in
- Piston diameter
- 1 5/8"
- Max. angle of rotation of the piston rod +/-
- 1.4 deg
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod
- Position sensing
- For proximity sensor
- Variants
- Heat-resistant seals max. 120°C
- Protection against torsion/guide
- Oval piston
- Operating pressure
- 0.06 MPa...1 MPa | 0.6 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...150 °C
- Cushioning length
- 21 mm
- Max. torque for protection against rotation
- 1.2 Nm
- Theoretical force at 6 bar, retracting
- 633 N
- Theoretical force at 6 bar, advancing
- 754 N
- Additional weight per 10 mm stroke
- 40 g
- Basic weight with 0 mm stroke
- 820 g
- Type of mounting
- Optionally: | With internal thread | With accessories
- Pneumatic connection
- NPT1/4-18
- Note on materials
- RoHS-compliant
- Cover material
- Aluminum
- Seals material
- TPE-U(PU)
- Housing material
- Aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 16262. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
