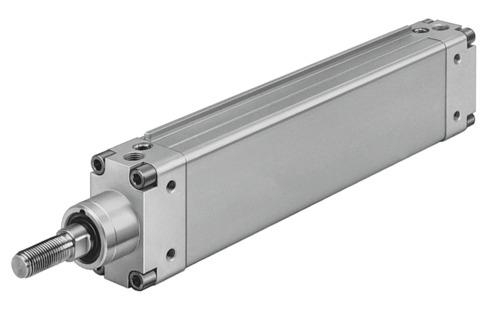

Name: Festo 16264 Flat cylinder DZH-2 1/2"- -PPV-A-S6
Brand: Festo

Flat cylinder DZH-2 1/2"- -PPV-A-S6

The Festo 16264 is a double-acting industrial component featuring a 2 1/2" piston diameter, an oval piston providing an oval piston guide with a max. torque for protection against rotation of 2 Nm, and a stroke ranging from 0.04 in to 40 in. Operating within a pressure range of 0.06 MPa to 1 MPa (0.6 bar to 10 bar) on compressed air as per ISO 8573-1:2010 [7:4:4], this unit delivers a theoretical force of 1682 N retracting and 1870 N advancing at 6 bar. It incorporates adjustable pneumatic cushioning at both ends with a 23 mm cushioning length, position sensing for proximity sensors, heat-resistant seals supporting a maximum temperature of 120°C, an ambient temperature range of -20 °C to 150 °C, and a corrosion resistance class of CRC 2. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 16264
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 16264.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 0.04 in...40 in
Piston diameter: 2 1/2"
Max. angle of rotation of the piston rod +/-: 0.4 deg
Cushioning: Pneumatic cushioning, adjustable at both ends
Mounting position: Any
Mode of operation: Double-acting
Structural design: Piston | Piston rod
Position sensing: For proximity sensor
Variants: Heat-resistant seals max. 120°C
Protection against torsion/guide: Oval piston
Operating pressure: 0.06 MPa...1 MPa | 0.6 bar...10 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Ambient temperature: -20 °C...150 °C
Cushioning length: 23 mm
Max. torque for protection against rotation: 2 Nm
Theoretical force at 6 bar, retracting: 1682 N
Theoretical force at 6 bar, advancing: 1870 N
Additional weight per 10 mm stroke: 80 g
Basic weight with 0 mm stroke: 1690 g
Type of mounting: Optionally: | With internal thread | With accessories
Pneumatic connection: NPT3/8-18
Note on materials: RoHS-compliant
Cover material: Aluminum
Seals material: TPE-U(PU)
Housing material: Aluminum
