Festo
162695

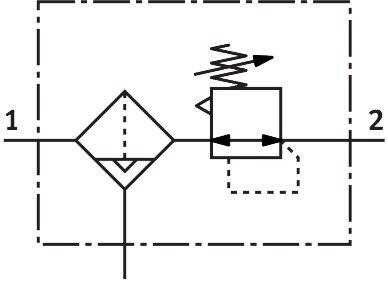

Filter regulator LFR-1/4-D-O-MINI-A
The Festo 162695 is a mini D-series filter regulator without a pressure gauge, featuring a structural design with a 40 µm grade of filtration and a fully automatic condensate drain holding a maximum condensate volume of 22 cm³. This component operates within a pressure range of 0.2 MPa to 1.2 MPa (2 bar to 12 bar) and delivers a normal nominal flow rate of 1400 l/min using compressed air conforming to ISO 8573-1:2010 [7:9:-] or inert gases. Equipped with a rotary knob with detent for actuator locking, a metal bowl guard, and a G1/8 pressure gauge setup, the unit achieves a pressure regulation range of 0.5 bar to 12 bar with a maximum pressure hysteresis of 0.2 bar. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 162695
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 162695.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Mini
- Series
- D
- Actuator lock
- Rotary knob with detent
- Mounting position
- Vertical ±5°
- Grade of ltration
- 40 µm
- Condensate drain
- Fully automatic
- Structural design
- Filter regulator without pressure gauge
- Max. condensate volume
- 22 cm³
- Bowl guard
- Metal bowl guard
- Pressure gauge
- Set up for G1/8
- Operating pressure
- 0.2 MPa...1.2 MPa | 2 bar...12 bar
- Pressure regulation range
- 0.5 bar...12 bar
- Max. pressure hysteresis
- 0.2 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 1400 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:9:-] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 °C...60 °C
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:8:4] | Inert gases
- Temperature of medium
- 5 °C...60 °C
- Ambient temperature
- 5 °C...60 °C
- Product weight
- 410 g
- Type of mounting
- Alternatively: | In-line installation | With accessories
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- G1/4
- Note on materials
- RoHS compliant
- Housing material
- Die-cast zinc
