Festo
162726

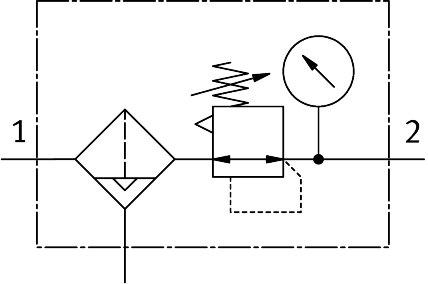

Filter regulator LFR-1/8-D-5M-MINI-A
The Festo 162726 is a Series D mini filter regulator with an integrated pressure gauge, featuring a fully automatic condensate drain and a 5 µm filtration grade within a metal bowl guard. Operating within a pressure range of 2 bar to 12 bar and supporting a normal nominal flow rate of 650 l/min, this vertical component processes compressed air and inert gases according to ISO 8573-1:2010 standards. The unit includes a rotary knob actuator lock with detent and maintains a maximum pressure hysteresis of 0.2 bar under moderate corrosion stress. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 162726
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 162726.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Mini
- Series
- D
- Actuator lock
- Rotary knob with detent
- Mounting position
- Vertical ±5°
- Grade of ltration
- 5 µm
- Condensate drain
- Fully automatic
- Structural design
- Filter regulator with pressure gauge
- Max. condensate volume
- 22 cm³
- Bowl guard
- Metal bowl guard
- Pressure gauge
- with pressure gauge
- Operating pressure
- 0.2 MPa...1.2 MPa | 2 bar...12 bar
- Pressure regulation range
- 0.5 bar...12 bar
- Max. pressure hysteresis
- 0.2 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 650 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:9:-] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 °C...60 °C
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [6:8:4] | Inert gases
- Temperature of medium
- 5 °C...60 °C
- Ambient temperature
- 5 °C...60 °C
- Product weight
- 460 g
- Type of mounting
- Alternatively: | In-line installation | With accessories
- Pneumatic connection 1
- G1/8
- Pneumatic connection 2
- G1/8
- Note on materials
- RoHS compliant
- Housing material
- Die-cast zinc
