Festo
162746

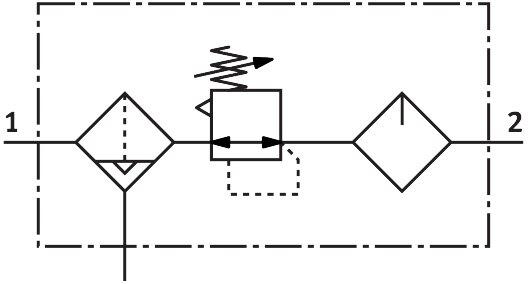

Service unit FRC-1/8-D-O-MINI-A
The Festo 162746 is a Series D mini filter regulator featuring an integrated proportional standard oil mist lubricator, a fully automatic condensate drain with a 22 cm³ max. condensate volume, and a 40 µm grade of filtration. Designed with a metal bowl guard, a rotary knob with detent for actuator locking, and a G1/8 pressure gauge setup, this unit operates within a pressure range of 2 bar to 12 bar and a normal nominal flow rate of 700 l/min for compressed air or inert gases. It achieves a maximum pressure hysteresis of 0.2 bar, a medium temperature range of -10 °C to 60 °C, and maintains a vertical ±5° mounting position under moderate corrosion stress. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 162746
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 162746.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Mini
- Series
- D
- Actuator lock
- Rotary knob with detent
- Mounting position
- Vertical ±5°
- Condensate drain
- Fully automatic
- Structural design
- Filter regulator with pressure gauge | Proportional standard oil mist lubricator
- Max. condensate volume
- 22 cm³
- Grade of ltration
- 40 µm
- Bowl guard
- Metal bowl guard
- Pressure gauge
- Set up for G1/8
- Operating pressure
- 0.2 MPa...1.2 MPa | 2 bar...12 bar
- Pressure regulation range
- 0.5 bar...12 bar
- Max. pressure hysteresis
- 0.02 MPa | 0.2 bar | 2.9 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 700 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:9:-] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:8:-] | Inert gases
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 600 g
- Type of mounting
- In-line installation | With accessories
- Pneumatic connection 1
- G1/8
- Pneumatic connection 2
- G1/8
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 162746. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
