Festo
162792

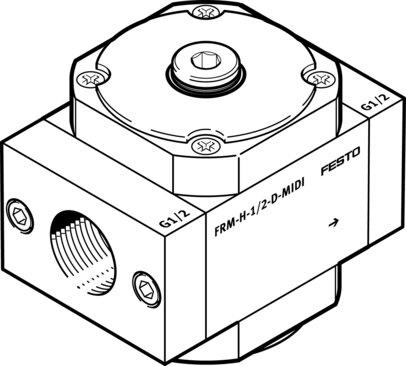

Branching module FRM-H-1/2-D-MIDI
The Festo 162792 is a branching module featuring a die-cast aluminum housing with a product weight of 506 g and an any-position mounting design. It handles an operating pressure range of 0.02 MPa to 1.6 MPa (0.2 bar to 16 bar) and delivers a standard nominal flow rate of 5100 l/min in the main flow direction from 1 to 2 utilizing G1/2 pneumatic connections for ports 1, 2, and 3, alongside a G1/4 connection for port 4. This RoHS-compliant component accommodates compressed air conforming to ISO 8573-1:2010 [7:-:-] or inert gases within a medium and ambient temperature range of -10 °C to 60 °C, while offering a corrosion resistance class of CRC 2 and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 162792
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 162792.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Structural design
- Branching module
- Operating pressure
- 0.02 MPa...1.6 MPa | 0.2 bar...16 bar
- Standard nominal ow rate in main ow direction 1 -> 2
- 5100 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Inert gases
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 °C...60 °C
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Inert gases
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 506 g
- Pneumatic connection 1
- G1/2
- Pneumatic connection 2
- G1/2
- Pneumatic connection 3
- G1/2
- Pneumatic connection 4
- G1/4
- Note on materials
- RoHS compliant
- Housing material
- Die-cast aluminum
