162837

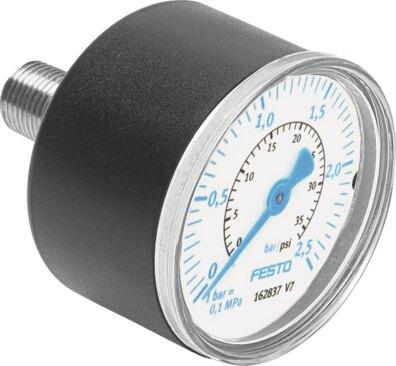

Name: Festo 162837 Pressure gauge MA-50-2,5-1/4-EN
Brand: Festo

Pressure gauge MA-50-2,5-1/4-EN

The Festo 162837 is a Bourdon tube pressure gauge featuring a nominal size of 50 and a centered rear G1/4 pneumatic connection for in-line installation. It provides a display and operating pressure range of 0 bar to 2.5 bar (0 psi to 36.25 psi) with a measurement accuracy class of 2.5, conforming to EN 837-1 standards and offering IP43 protection. Constructed with brass media-contacting materials and a brass screwed plug, this component operates within a medium and ambient temperature range of -20 °C to 60 °C using neutral liquids or inert gases, while maintaining ATEX certification for Zones 1, 2, 21, and 22. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 162837
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 162837.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Display range: 0 bar...2.5 bar | 0 psi...36.25 psi
Conforms to standard: EN 837-1
Pressure gauge nominal size: 50
Explosion prevention and protection: Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Structural design: Bourdon tube pressure gauge
Type of mounting: In-line installation
Operating medium: Inert gases | Neutral liquids
Information on operating and pilot media: No acetylene | No oxygen
Operating pressure: 0 MPa...0.25 MPa | 0 bar...2.5 bar | 0 psi...36.25 psi
Intermittent load factor: 0.66
Measurement accuracy class: 2.5
Degree of protection: IP43
Temperature of medium: -20 °C...60 °C
Ambient temperature: -20 °C...60 °C
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Note on materials: RoHS compliant
Connection position: Centered on rear side
Pneumatic connection: G1/4
Materials in contact with the media: Brass
Material of screwed plug: Brass
Housing material: ABS

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 162837. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
