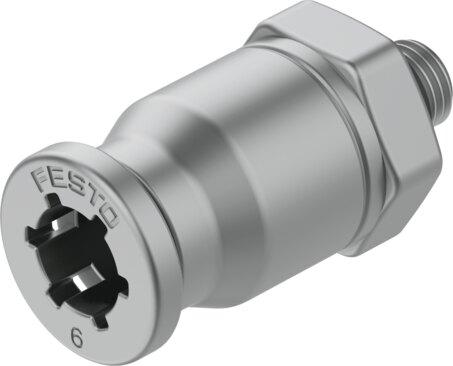

Reference imageConfirm configuration by manufacturer part number.
Festo
162861
Push-in fitting CRQS-M5-6
The Festo 162861 is a straight industrial component featuring a 2 mm nominal width, a standard size, and a push-pull structural design with a 19.5 mm tubing insertion depth. Built with a sealing ring on the screwed plug and a Class 4 corrosion resistance rating, it operates across a pressure range of -0.95 bar to 10 bar for compressed air or water up to 50 °C, functioning within ambient temperatures from -15 °C to 120 °C. This unit weighs 8.4 g, requires a nominal tightening torque of 1.33 Nm with a ±20% tolerance, and accommodates PFAN usable connector cables in any mounting position. Request a quote today by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 162861
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 162861.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 2 mm
- Tubing insertion depth
- 19.5 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 1
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -15 °C...120 °C
- Nominal tightening torque
- 1.33 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 8.4 g
- Usable connector cables
- PFAN
- Type of mounting
- External hexagon SW12
- Pneumatic connection 1
- External thread M5
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Releasing ring color
- Silver
- Material of screwed plug
- high-alloy stainless steel
- Note on materials
- RoHS compliant
- Housing material
- high-alloy stainless steel
- Material of threaded seal
- FPM | high-alloy stainless steel
