Festo
162876

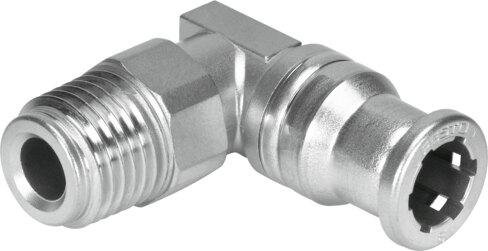

Push-in L-fitting CRQSL-3/8-10
The Festo part number 162876 is a standard L-shaped industrial component featuring a nominal width of 6 mm and a tubing insertion depth of 25.5 mm, utilizing the push-pull principle for connection. This unit features an external thread R3/8 pneumatic connection 1 and accepts a pneumatic tubing outside diameter of 10 mm for connection 2, with an external hexagon SW17 type of mounting in any mounting position. Operating pressure spans -0.095 MPa to 1 MPa (-0.95 bar to 10 bar, -13.775 psi to 145 psi) for compressed air and up to 0.6 MPa at 50 °C for water, supporting an ambient temperature range of -15 °C to 120 °C and a corrosion resistance class of CRC 4. Submit the exact part number 162876, required quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 162876
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 162876.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 6 mm
- Tubing insertion depth
- 25.5 mm
- Mounting position
- Any
- Design
- L-shape
- Pack size
- 1
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -15 °C...120 °C
- Product weight
- 49 g
- Usable connector cables
- PFAN
- Type of mounting
- External hexagon SW17
- Pneumatic connection 1
- External thread R3/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 10 mm
- Releasing ring color
- Silver
- Material of screwed plug
- high-alloy stainless steel
- Note on materials
- RoHS compliant
- Housing material
- high-alloy stainless steel
- Releasing ring material
- high-alloy stainless steel
- Material of tubing seal
- FPM
- Material of tube retaining claw
- high-alloy stainless steel
- Thrust ring material
- high-alloy stainless steel
