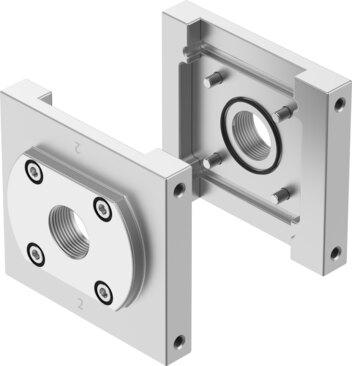

Reference imageConfirm configuration by manufacturer part number.
Festo
1629298
Sub-base PAML-CP-186-HP3-G2
Engineered by Festo, this industrial component part number 1629298 features a size 186 design with a nominal width DN of 54 from the L series. Constructed with a wrought aluminum alloy sub-base, NBR seals, and high-grade steel screws, it operates at a pressure range of 0 MPa to 5 MPa (0 bar to 50 bar) using compressed air as per ISO 8573-1:2010 [-:-:-]. The unit has a product weight of 4400 g, G2 pneumatic connections for both port 1 and port 2, a Corrosion Resistance Class (CRC) of 2 for moderate corrosion stress, and complies with RoHS material requirements. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1629298
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1629298.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 186
- Nominal width DN
- 54
- Series
- L
- Operating pressure
- 0 MPa...5 MPa | 0 bar...50 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -10 °C...60 °C
- For use in the food industry
- See supplementary material information
- Temperature of medium
- 5 °C...60 °C
- Ambient temperature
- 5 °C...60 °C
- Product weight
- 4400 g
- Pneumatic connection 1
- G2
- Pneumatic connection 2
- G2
- Note on materials
- RoHS compliant
- Material of sub-base
- Wrought aluminum alloy
- Seals material
- NBR
- Material of screws
- High-grade steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1629298. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
