Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
1629664

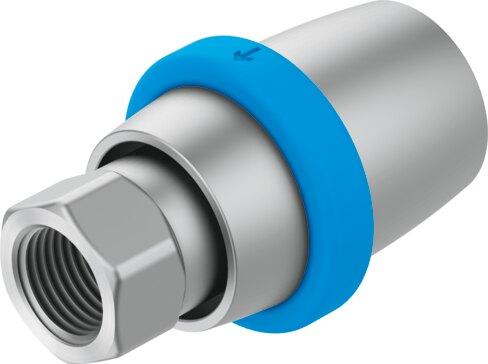

Hand slide valve VBOH-32-G34
The Festo part number 1629664 is a directly controlled 3/2-way bistable sleeve valve featuring G3/4 pneumatic connections and a nominal width of 19.3 mm. Constructed with an anodized wrought aluminum alloy housing and soft sealing principle, this component delivers a normal nominal flow rate of 7691 l/min across an operating pressure range of -0.95 bar to 12 bar and ambient temperatures from -10 °C to 80 °C. It accommodates manual actuation in any mounting position via in-line screw-in installation, utilizing compressed air as per ISO 8573-1:2010 [7:4:4] with compatible cylindrical thread fittings. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1629664
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1629664.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, bistable
- Pneumatic connection 1
- G3/4
- Pneumatic connection 2
- G3/4
- Actuation type
- Manual
- Type of mounting
- In-line installation | Screw-in
- Normal nominal ow rate (normalized to DIN 1343)
- 7691 l/min
- Nominal width
- 19.3 mm
- Operating pressure
- -0.095 MPa...1.2 MPa | -0.95 bar...12 bar
- Ambient temperature
- -10 °C...80 °C
- Housing material
- Wrought aluminum alloy, anodized
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Width dimension
- 57.5 mm
- Application note
- Please only screw in ttings with a cylindrical thread. Installing tapered | threads can damage the housing and cause the sleeve to jam or | malfunction.
- Sealing principle
- Soft
- Mounting position
- Any
- Structural design
- Sleeve valve
- Type of control
- directly
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Temperature of medium
- -10 °C...80 °C
- Actuating force
- 70 N
- Product weight
- 183 g
- Material of screwed plug
- Wrought aluminum alloy, anodized
- Note on materials
- RoHS compliant
- Seals material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1629664. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
