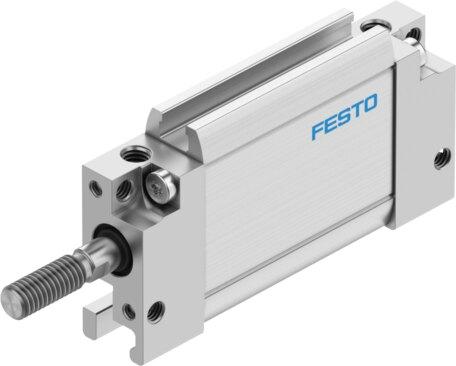

Reference imageConfirm configuration by manufacturer part number.
Festo
162972
Flat cylinder DZF-1/2"- -A-P-A
The Festo 162972 is a double-acting industrial component featuring a 1/2" equivalent piston diameter, an oval piston providing an anti-torsion guide, and a piston rod with a 10-32 UNF-2A thread. This unit operates within a pressure range of 1.6 bar to 10 bar using compressed air conforming to ISO 8573-1:2010 [7:4:4], with oil lubrication permitted and required for subsequent operation. It incorporates elastic cushioning rings at both ends, accommodates any mounting position, and offers stroke lengths from 0.04 in to 8 in while achieving position sensing via a proximity switch. Please submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 162972
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 162972.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 0.04 in...8 in
- Piston diameter
- 1/2" | Equivalent diameter
- Piston rod thread
- 10-32 UNF-2A
- Max. angle of rotation of the piston rod +/-
- 2.5 deg
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Protection against torsion/guide
- Oval piston
- Operating pressure
- 0.16 MPa...1 MPa | 1.6 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -4 °F...176 °F
- Impact energy in the end positions
- 0.066 ft-lbf
- Max. torque for protection against rotation
- 0.876 Inf
- Theoretical force at 6 bar, retracting
- 11.5 lbf
- Theoretical force at 6 bar, advancing
- 15.3 lbf
- Moving mass at 0 mm stroke
- 12 g
- Moving mass with 0 inch stroke
- 0.42 oz
- Additional moving mass per 10 mm stroke
- 2 g
- Additional moving mass per 1 inch stroke
- 0.18 oz
- Additional weight per 10 mm stroke
- 9 g
- Additional weight per 1 inch stroke
- 0.81 oz
- Basic weight with 0 mm stroke
- 96 g
- Basic weight with 0 inch stroke
- 3.39 oz
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 162972. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
