Festo
162974

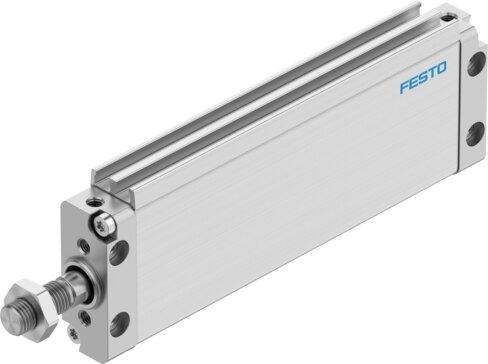

Flat cylinder DZF-1"- -A-P-A
The Festo 162974 is a double-acting industrial component featuring a 1-inch equivalent piston diameter, an adjustable stroke ranging from 0.04 inches to 8 inches, and a 3/8-24 UNF-2A piston rod thread at one end. Operating on compressed air according to ISO 8573-1:2010 [7:4:4] within a 1 bar to 10 bar pressure range, this unit incorporates an oval piston for torsion protection, elastic cushioning rings at both ends, and position sensing via a proximity switch. It delivers a theoretical retracting force of 55.5 lbf at 6 bar, supports an ambient temperature range of -4 °F to 176 °F, and maintains a moderate corrosion resistance class (CRC 2) alongside VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 162974
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 162974.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 0.04 in...8 in
- Piston diameter
- 1" | Equivalent diameter
- Piston rod thread
- 3/8-24 UNF-2A
- Max. angle of rotation of the piston rod +/-
- 1 deg
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Protection against torsion/guide
- Oval piston
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -4 °F...176 °F
- Impact energy in the end positions
- 0.074 ft-lbf
- Max. torque for protection against rotation
- 4.42 Inf
- Theoretical force at 6 bar, retracting
- 55.5 lbf
- Theoretical force at 6 bar, advancing
- 66.3 lbf
- Moving mass at 0 mm stroke
- 40 g
- Moving mass with 0 inch stroke
- 1.41 oz
- Additional moving mass per 10 mm stroke
- 6 g
- Additional moving mass per 1 inch stroke
- 0.54 oz
- Additional weight per 10 mm stroke
- 18 g
- Additional weight per 1 inch stroke
- 1.61 oz
- Basic weight with 0 mm stroke
- 168 g
- Basic weight with 0 inch stroke
- 5.93 oz
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 162974. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
