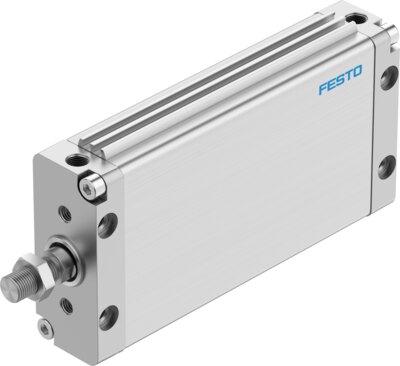

Reference imageConfirm configuration by manufacturer part number.
Festo
162978
Flat cylinder DZF-2 1/2"- -A-P-A
The Festo 162978 is a double-acting industrial component featuring a 2 1/2" equivalent piston diameter, an adjustable stroke ranging from 0.04 in to 13 in, and a 5/8-18 UNF-2A piston rod thread. This unit utilizes an oval piston for torsion protection with a maximum rotation angle of +/- 0.4 degrees, elastic cushioning rings at both ends, and position sensing via proximity switch. Operating on compressed air within a 1 bar to 10 bar pressure range and -4 °F to 176 °F ambient temperature, it delivers a theoretical retracting force of 378 lbf at 6 bar. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 162978
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 162978.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 0.04 in...13 in
- Piston diameter
- 2 1/2" | Equivalent diameter
- Piston rod thread
- 5/8-18 UNF-2A
- Max. angle of rotation of the piston rod +/-
- 0.4 deg
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Protection against torsion/guide
- Oval piston
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -4 °F...176 °F
- Impact energy in the end positions
- 0.52 ft-lbf
- Max. torque for protection against rotation
- 13.3 Inf
- Theoretical force at 6 bar, retracting
- 378 lbf
- Theoretical force at 6 bar, advancing
- 420 lbf
- Moving mass at 0 mm stroke
- 337 g
- Moving mass with 0 inch stroke
- 11.89 oz
- Additional moving mass per 10 mm stroke
- 25 g
- Additional moving mass per 1 inch stroke
- 2.24 oz
- Additional weight per 10 mm stroke
- 91 g
- Additional weight per 1 inch stroke
- 8.15 oz
- Basic weight with 0 mm stroke
- 1379 g
- Basic weight with 0 inch stroke
- 48.64 oz
