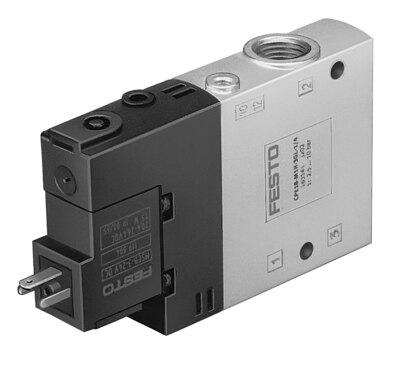

Reference imageConfirm configuration by manufacturer part number.
Festo
163140
Air solenoid valve CPE18-M1H-3OL-1/4
The Festo 163140 is an electrical 3/2-way monostable open industrial component featuring a piston gate valve structural design, soft sealing principle, and piloted type of control with internal pilot air supply. Operating at 24V DC within an operating pressure range of 0.25 MPa to 1 MPa (2.5 bar to 10 bar), this 18 mm wide component delivers a normal nominal flow rate of 1700 l/min through G1/4 pneumatic working ports. It includes a pneumatic spring reset method, IP65 degree of protection with a plug socket per IEC 60529, any mounting position, non-detenting and accessory-detenting manual override, and carries c UL us recognized (OL) and DNV maritime classifications. Submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 163140
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 163140.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, monostable, open
- Actuation type
- Electrical
- Width
- 18 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1700 l/min
- Pneumatic working port
- G1/4
- Operating voltage
- 24V DC
- Operating pressure
- 0.25 MPa...1 MPa | 2.5 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNV-TAA000032X | UL MH19482
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 8 mm
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Valve position ID
- Label holder
- Lap
- Positive overlap
- Switching time off
- 18 ms
- On switching time
- 28 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 3300 µs
- Max. negative test pulse on 1 signal
- 3100 µs
- Coil characteristics
- 24 V DC: 1.5 W
