163148

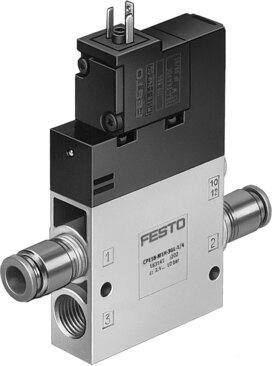

Name: Festo 163148 Air solenoid valve CPE18-M1H-3OL-QS-8
Brand: Festo

Air solenoid valve CPE18-M1H-3OL-QS-8

The Festo 163148 is a 3/2-way monostable open industrial component featuring an electrical actuation type and an 18 mm width with a nominal width of 8 mm. This piston gate valve utilizes a soft sealing principle, piloted control with internal pilot air supply, a pneumatic spring reset method, and offers a normal nominal flow rate of 850 l/min alongside an operating pressure range of 0.25 MPa to 1 MPa. It provides an IP65 degree of protection with a plug socket per IEC 60529, features QS-8 pneumatic working ports, operates on 24V DC, and holds c UL us and DNV maritime certifications. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 163148
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 163148.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 3/2-way, monostable, open
Actuation type: Electrical
Width: 18 mm
Normal nominal ow rate (normalized to DIN 1343): 850 l/min
Pneumatic working port: QS-8
Operating voltage: 24V DC
Operating pressure: 0.25 MPa...1 MPa | 2.5 bar...10 bar
Structural design: Piston gate valve
Reset method: Pneumatic spring
Certication: c UL us - recognized (OL)
Maritime classication: See certicate
Certicate issuing authority: DNV-TAA000032X | UL MH19482
Degree of protection: IP65 | With plug socket | As per IEC 60529
Nominal width: 8 mm
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting via accessory | Non-detenting
Type of control: Piloted
Pilot air supply port: Internal
Flow direction: Non-reversible
Valve position ID: Label holder
Lap: Positive overlap
Switching time oﬀ: 18 ms
On switching time: 28 ms
Duty cycle: 100%
Max. positive test pulse with 0 signal: 3300 µs
Max. negative test pulse on 1 signal: 3100 µs
Coil characteristics: 24 V DC: 1.5 W

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 163148. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
