Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

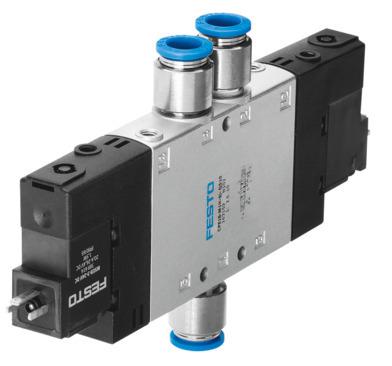

Reference imageConfirm configuration by manufacturer part number.
Festo
163151
Air solenoid valve CPE18-M1H-5J-QS-8
The Festo 163151 is a 5/2-way bistable industrial component featuring an 18 mm width, a piston gate valve structural design, and a normal nominal flow rate of 850 l/min normalized to DIN 1343. This electrically actuated, piloted valve operates at 24V DC across an operating pressure range of 0.2 MPa to 1 MPa (2 bar to 10 bar) and incorporates QS-8 pneumatic working ports, adjustable exhaust air, and an internal pilot air supply. It offers an IP65 degree of protection with a plug socket as per IEC 60529, soft sealing principle, any mounting position, and both detenting and non-detenting manual override options, backed by c UL us recognition and DNV maritime classification. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 163151
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 163151.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Electrical
- Width
- 18 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 850 l/min
- Pneumatic working port
- QS-8
- Operating voltage
- 24V DC
- Operating pressure
- 0.2 MPa...1 MPa | 2 bar...10 bar
- Structural design
- Piston gate valve
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNV-TAA000032X | UL MH19482
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 8 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Valve position ID
- Label holder
- Lap
- Positive overlap
- Changeover time
- 13 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 3300 µs
- Max. negative test pulse on 1 signal
- 3100 µs
- Coil characteristics
- 24 V DC: 1.5 W
- Permissible voltage uctuations
- -15% / +10%
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 163151. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
