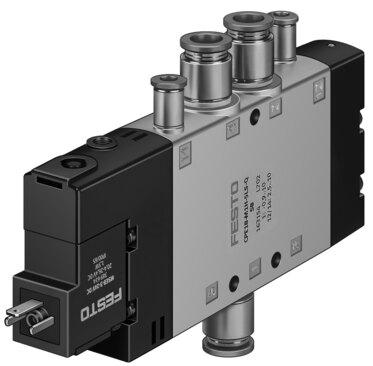

Reference imageConfirm configuration by manufacturer part number.
Festo
163162
Air solenoid valve CPE18-M1H-5LS-QS-10
The Festo 163162 is an electrical 5/2-way monostable industrial component featuring a piston gate valve structural design, a nominal width of 8 mm, and an 18 mm width. Operating at 24V DC with an operating pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and a normal nominal flow rate of 1000 l/min, this piloted unit includes QS-10 pneumatic working ports, an external pilot air supply port, a pneumatic spring reset method, and an adjustable exhaust air function with a soft sealing principle. It provides IP65 protection with a plug socket per IEC 60529, offers detenting via accessory and non-detenting manual override, supports any mounting position, and holds c UL us and DNV maritime certifications. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 163162
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 163162.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Width
- 18 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1000 l/min
- Pneumatic working port
- QS-10
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNV-TAA000032X | UL MH19482
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 8 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Valve position ID
- Label holder
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.25 MPa...1 MPa
- Pilot pressure
- 2.5 bar...10 bar
- Switching time off
- 20 ms
- On switching time
- 26 ms
- Duty cycle
- 100%
