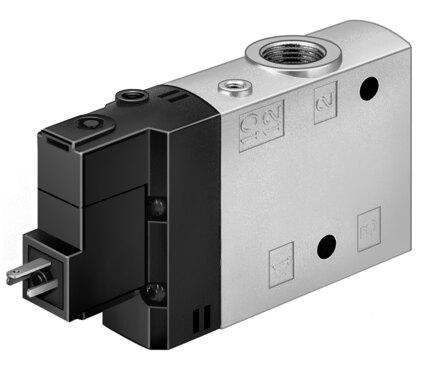

Reference imageConfirm configuration by manufacturer part number.
Festo
163164
Air solenoid valve CPE24-M1H-3OL-3/8
The Festo part number 163164 is a 3/2-way monostable open industrial component utilizing an electrical actuation type and a piloted type of control with internal pilot air supply. Featuring a 24 mm width, an 11 mm nominal width, and a piston gate valve structural design with soft sealing, this unit delivers a normal nominal flow rate of 3000 l/min through G3/8 pneumatic working ports. It operates at 24V DC across an operating pressure range of 0.25 MPa to 1 MPa (2.5 bar to 10 bar) and incorporates a pneumatic spring reset method, detenting via accessory or non-detenting manual override, and IP65 degree of protection with a plug socket per IEC 60529 in any mounting position. Certified by c UL us-recognized (OL) and DNV-TAA000032X with UL MH19482 maritime classification, this non-reversible flow direction component is ready for integration. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 163164
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 163164.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, monostable, open
- Actuation type
- Electrical
- Width
- 24 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 3000 l/min
- Pneumatic working port
- G3/8
- Operating voltage
- 24V DC
- Operating pressure
- 0.25 MPa...1 MPa | 2.5 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNV-TAA000032X | UL MH19482
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 11 mm
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Valve position ID
- Label holder
- Lap
- Positive overlap
- Switching time off
- 33 ms
- On switching time
- 50 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 3300 µs
- Max. negative test pulse on 1 signal
- 3100 µs
- Coil characteristics
- 24 V DC: 1.5 W
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 163164. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
