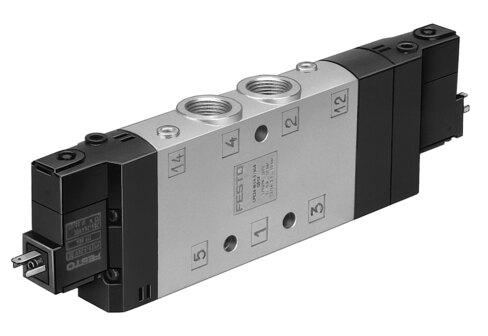

Reference imageConfirm configuration by manufacturer part number.
Festo
163167
Air solenoid valve CPE24-M1H-5J-3/8
The Festo 163167 is a 24 mm wide 5/2-way bistable industrial component featuring a piston gate valve structural design and soft sealing principle. Operating on 24V DC with an operating pressure range of 0.2 MPa to 1 MPa (2 bar to 10 bar), this electrically actuated, piloted valve delivers a normal nominal flow rate of 3200 l/min through G3/8 pneumatic working ports and an 11 mm nominal width. Certified by c UL us - recognized (OL) and DNV-TAA000032X, the unit achieves an IP65 degree of protection with a plug socket according to IEC 60529 and includes adjustable exhaust air function, internal pilot air supply, non-reversible flow direction, and both detenting and non-detenting manual override options for mounting in any position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 163167
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 163167.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Electrical
- Width
- 24 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 3200 l/min
- Pneumatic working port
- G3/8
- Operating voltage
- 24V DC
- Operating pressure
- 0.2 MPa...1 MPa | 2 bar...10 bar
- Structural design
- Piston gate valve
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNV-TAA000032X | UL MH19482
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 11 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Valve position ID
- Label holder
- Lap
- Positive overlap
- Changeover time
- 25 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 3300 µs
- Max. negative test pulse on 1 signal
- 3100 µs
- Coil characteristics
- 24 V DC: 1.5 W
- Permissible voltage uctuations
- -15% / +10%
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 163167. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
