Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

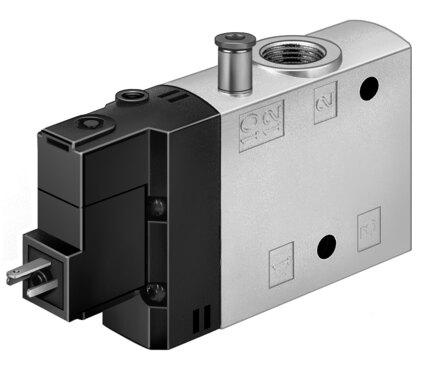

Reference imageConfirm configuration by manufacturer part number.
Festo
163168
Air solenoid valve CPE24-M1H-3OLS-3/8
The Festo 163168 is a 3/2-way monostable open industrial component featuring a piston gate valve structural design and a 24 mm width with an 11 mm nominal width. Operating at 24V DC with an operating pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar), this piloted unit delivers a normal nominal flow rate of 3000 l/min through G3/8 pneumatic working ports and an external pilot air supply port. It includes a soft sealing principle, pneumatic spring reset method, non-reversible flow direction, IP65 protection rating with a plug socket per IEC 60529, and both detenting via accessory and non-detenting manual overrides for any mounting position. Certified by c UL us-recognized (OL) and DNV-TAA000032X with maritime classification, this hardware complies with UL MH19482 standards. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 163168
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 163168.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, monostable, open
- Actuation type
- Electrical
- Width
- 24 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 3000 l/min
- Pneumatic working port
- G3/8
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNV-TAA000032X | UL MH19482
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 11 mm
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Non-reversible
- Valve position ID
- Label holder
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.25 MPa...1 MPa
- Pilot pressure
- 2.5 bar...10 bar
- Switching time off
- 33 ms
- On switching time
- 50 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 3300 µs
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 163168. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
