Festo
1631997

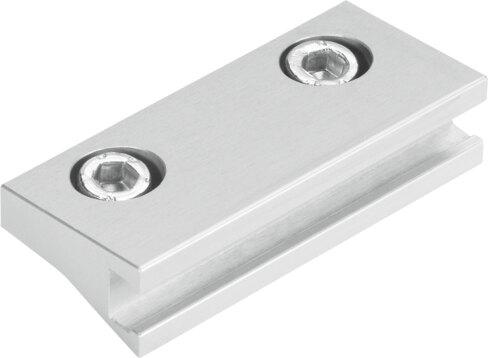

Sensor bracket DASI-Q11-32-A-SR
The Festo 1631997 is a size 32 sensor rail designed for T-slots with a matching piston diameter of Ø32. This industrial component features a product weight of 42 g, a corrosion resistance class of CRC 2 for moderate corrosion stress, and VDMA24364-B1/B2-L LABS conformity with RoHS compliant materials. It supports mounting via T-slot clamping, through-holes with screws, or slot nuts, utilizing galvanized steel screws across an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1631997
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1631997.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 32
- Design
- For T-slot
- for piston Ø
- Ø32
- Structural design
- Sensor rail
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 42 g
- Type of mounting
- Clamped in T slot | With through-hole and screw | With slot nuts
- Note on materials
- RoHS compliant
- Material of screws
- Steel | Galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1631997. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
