Festo
163438

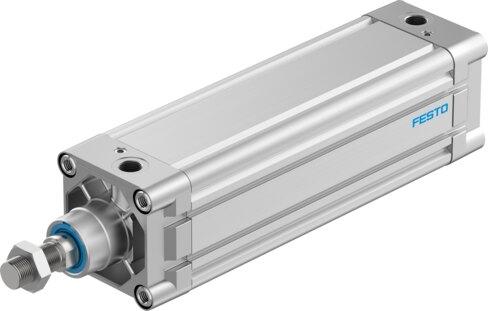

ISO cylinder DNC-80-125-PPV-A
The Festo 163438 is a double-acting industrial component featuring an 80 mm piston diameter and a 125 mm stroke configured with an M20x1.5 external piston rod thread at one end. Built on a profile barrel structural design with a piston and piston rod, it conforms to ISO 15552 and operates within a pressure range of 0.06 MPa to 1.2 MPa utilizing compressed air as per ISO 8573-1:2010 [7:4:4]. This unit includes adjustable pneumatic cushioning at both ends with a 32 mm cushioning length, position sensing via proximity switch, and delivers a theoretical retraction force of 2721 N at 6 bar. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 163438
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 163438.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 125 mm
- Piston diameter
- 80 mm
- Piston rod thread
- M20x1.5
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.06 MPa...1.2 MPa | 0.6 bar...12 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.9 J
- Cushioning length
- 32 mm
- Theoretical force at 6 bar, retracting
- 2721 N
- Theoretical force at 6 bar, advancing
- 3016 N
- Moving mass at 0 mm stroke
- 1131 g
- Additional moving mass per 10 mm stroke
- 38 g
- Basic weight with 0 mm stroke
- 2790 g
- Additional weight per 10 mm stroke
- 106 g
- Type of mounting
- With internal thread | With accessories
- Pneumatic connection
- G3/8
- Note on materials
- RoHS compliant
- Cover material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 163438. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
