Festo
163476

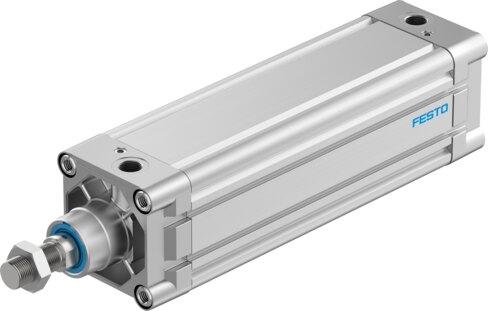

ISO cylinder DNC-100-500-PPV-A
The Festo 100 mm piston diameter industrial component with a 500 mm stroke operates in a double-acting mode using compressed air conforming to ISO 8573-1:2010 [7:4:4] across an operating pressure range of 0.06 MPa to 1.2 MPa. Conforming to ISO 15552, this profile barrel unit features an external M20x1.5 piston rod thread, adjustable pneumatic cushioning at both ends, and position sensing via proximity switch. It delivers a theoretical retracting force of 4418 N at 6 bar within an ambient temperature range of -20 °C to 80 °C and features moderate corrosion resistance class 2. Submit part number 163476, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 163476
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 163476.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 500 mm
- Piston diameter
- 100 mm
- Piston rod thread
- M20x1.5
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.06 MPa...1.2 MPa | 0.6 bar...12 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 1.2 J
- Cushioning length
- 32 mm
- Theoretical force at 6 bar, retracting
- 4418 N
- Theoretical force at 6 bar, advancing
- 4712 N
- Moving mass at 0 mm stroke
- 1544 g
- Additional moving mass per 10 mm stroke
- 38 g
- Basic weight with 0 mm stroke
- 4653 g
- Additional weight per 10 mm stroke
- 115 g
- Type of mounting
- With internal thread | With accessories
- Pneumatic connection
- G1/2
- Note on materials
- RoHS compliant
- Cover material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 163476. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
