Festo
1635989

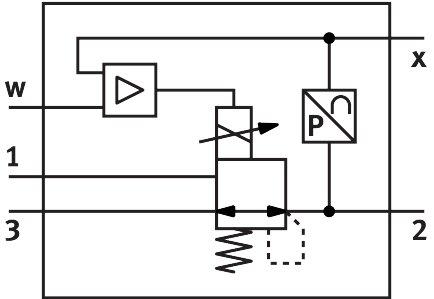

Proportional pressure control valve VPPL-3L-3-G14-0L20H-V1-V-S1-6
The Festo 1635989 is a directly controlled piston regulator featuring a 3 mm nominal width for both pressurization and exhaust, operating as a 3-way proportional pressure control valve closed with a soft sealing principle. It delivers a pressure regulation range of 0.02 MPa to 2 MPa (0.2 bar to 20 bar) at a maximum operating pressure of 2 MPa (20 bar) and supports an inlet pressure up to 50 bar (5 MPa) with a maximum pressure hysteresis of 0.01 MPa (0.1 bar). Electrical actuation includes an LED display, reverse polarity protection for all connections, mechanical spring reset, and a safety function where outlet pressure drops to 0 bar if the power supply cable breaks. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1635989
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1635989.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width pressurization
- 3 mm
- Exhaust nominal width
- 3 mm
- Actuation type
- Electrical
- Sealing principle
- Soft
- Mounting position
- Any | Preferably upright
- Structural design
- Directly controlled piston regulator
- Short-circuit protection
- No
- Max. cable length
- 30 m
- Safety instructions
- VPPL safety position: if the power supply cable breaks, the outlet | pressure will drop to 0 bar.
- Reverse polarity protection
- for all electrical connections
- Reset method
- Mechanical spring
- Type of control
- directly
- Valve function
- 3-way proportional pressure control valve closed
- Display type
- LED indicator
- Operating pressure
- 2 MPa | 20 bar
- Pressure regulation range MPa
- 0.02 MPa...2 MPa
- Pressure regulation range
- 0.2 bar...20 bar
- Inlet pressure 1
- 0 bar...50 bar
- Inlet pressure 1 MPa
- 0 MPa...5 MPa
- Max. pressure hysteresis
- 0.01 MPa | 0.1 bar | 1.45 psi
- b-value
- 0.25
- C value
- 0.8 l/sbar
- Normal nominal ow rate (normalized to DIN 1343)
- 245 l/min
- Standard nominal ow rate 2-3
- 282 l/min
- Switching time off
- 654 ms
- On switching time
- 428 ms
- DC operating voltage range
- 21.6 V...27.6 V
- Duty cycle
- 100%
