163765

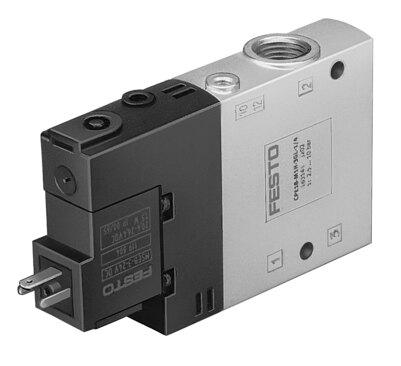

Name: Festo 163765 Air solenoid valve CPE18-M2H-3GLS-1/4
Brand: Festo

Air solenoid valve CPE18-M2H-3GLS-1/4

The Festo part number 163765 is an 18 mm wide electrical pneumatic component featuring a 3/2-way closed monostable valve function and a piston gate valve structural design. It delivers a normal nominal flow rate of 1300 l/min through a G1/4 pneumatic working port, operating at 110V AC across a pressure range of -0.09 MPa to 1 MPa. This piloted unit utilizes a soft sealing principle, pneumatic spring reset, and offers both detenting and non-detenting manual override options with an IP65 degree of protection when utilizing a plug socket. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this certified assembly.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 163765
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 163765.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 3/2-way, closed, monostable
Actuation type: Electrical
Width: 18 mm
Normal nominal ow rate (normalized to DIN 1343): 1300 l/min
Pneumatic working port: G1/4
Operating voltage: 110V AC
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Structural design: Piston gate valve
Reset method: Pneumatic spring
Certication: c UL us - recognized (OL)
Maritime classication: See certicate
CE marking (see declaration of conformity): As per EU low voltage directive
UKCA marking (see declaration of conformity): To UK instructions for electrical equipment
Certicate issuing authority: DNV-TAA000032X | UL MH19482
Degree of protection: IP65 | With plug socket | As per IEC 60529
Nominal width: 8 mm
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting via accessory | Non-detenting
Type of control: Piloted
Pilot air supply port: External
Flow direction: Non-reversible
Valve position ID: Label holder
Lap: Positive overlap
Pilot pressure MPa: 0.25 MPa...1 MPa
Pilot pressure: 2.5 bar...10 bar
Switching time oﬀ: 18 ms
On switching time: 28 ms

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 163765. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
