Festo
163792

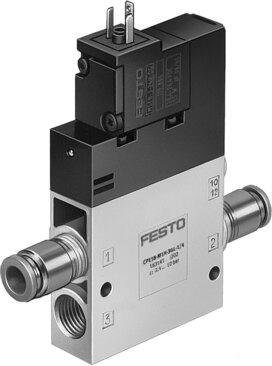

Air solenoid valve CPE18-M3H-3OL-QS-8
The Festo 163792 is an 18 mm wide electrical industrial component featuring a 3/2-way monostable open valve function with piloted control and a piston gate valve structural design. It delivers a normal nominal flow rate of 850 l/min through QS-8 pneumatic working ports across an operating pressure range of 0.25 MPa to 1 MPa (2.5 bar to 10 bar) at an operating voltage of 230V AC. Equipped with a soft sealing principle, pneumatic spring reset, IP65 degree of protection with a plug socket, and both detenting and non-detenting manual override options, this unit can be mounted in any position. Compliance includes CE marking as per the EU low voltage directive, UKCA marking to UK electrical instructions, c UL us recognition, and DNV maritime classification. Submit the exact part number, quantity, and application requirements for an official quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 163792
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 163792.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, monostable, open
- Actuation type
- Electrical
- Width
- 18 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 850 l/min
- Pneumatic working port
- QS-8
- Operating voltage
- 230V AC
- Operating pressure
- 0.25 MPa...1 MPa | 2.5 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- Certicate issuing authority
- DNV-TAA000032X | UL MH19482
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 8 mm
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Valve position ID
- Label holder
- Lap
- Positive overlap
- Switching time off
- 18 ms
- On switching time
- 28 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 3300 µs
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 163792. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
