163811

Name: Festo 163811 Air solenoid valve CPE24-M2H-5J-3/8
Brand: Festo

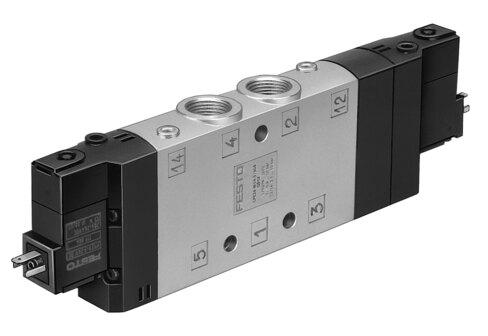

Air solenoid valve CPE24-M2H-5J-3/8

The Festo 163811 is a 5/2-way bistable industrial component featuring an electrical actuation type, a piston gate valve structural design, and a piloted type of control with an 11 mm nominal width. Delivering a normal nominal flow rate of 3200 l/min through G3/8 pneumatic working ports, this 24 mm wide unit operates within a pressure range of 0.2 MPa to 1 MPa (2 bar to 10 bar) at 110V AC and achieves an IP65 degree of protection when installed with a plug socket in any mounting position. It incorporates an adjustable exhaust air function, a soft sealing principle, detenting via accessory and non-detenting manual overrides, and holds c UL us recognition along with DNV maritime classification. Submit the exact part number, quantity, and application requirements to request a formal quote for this Festo component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 163811
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 163811.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, bistable
Actuation type: Electrical
Width: 24 mm
Normal nominal ow rate (normalized to DIN 1343): 3200 l/min
Pneumatic working port: G3/8
Operating voltage: 110V AC
Operating pressure: 0.2 MPa...1 MPa | 2 bar...10 bar
Structural design: Piston gate valve
Certication: c UL us - recognized (OL)
Maritime classication: See certicate
CE marking (see declaration of conformity): As per EU low voltage directive
UKCA marking (see declaration of conformity): To UK instructions for electrical equipment
Certicate issuing authority: DNV-TAA000032X | UL MH19482
Degree of protection: IP65 | With plug socket | As per IEC 60529
Nominal width: 11 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting via accessory | Non-detenting
Type of control: Piloted
Pilot air supply port: Internal
Flow direction: Non-reversible
Valve position ID: Label holder
Lap: Positive overlap
Changeover time: 25 ms
Duty cycle: 100%
Max. positive test pulse with 0 signal: 3300 µs
Max. negative test pulse on 1 signal: 3100 µs

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 163811. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
