Festo
163848

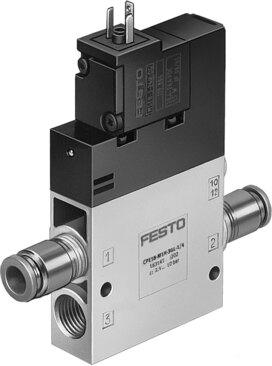

Air solenoid valve CPE24-M3H-3OL-QS-12
The Festo 163848 is a 24 mm wide electrical industrial component featuring a 3/2-way, monostable, open valve function and a piston gate valve structural design with a soft sealing principle. Operating at 230V AC with a normal nominal flow rate of 1650 l/min and an operating pressure range of 0.25 MPa to 1 MPa (2.5 bar to 10 bar), this piloted unit includes QS-12 pneumatic working ports and a pneumatic spring reset method. It provides an IP65 degree of protection with a plug socket as per IEC 60529 and carries c UL us recognition along with DNV maritime classification. Submit your exact part number, quantity, and application requirements for a quote today.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 163848
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 163848.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, monostable, open
- Actuation type
- Electrical
- Width
- 24 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1650 l/min
- Pneumatic working port
- QS-12
- Operating voltage
- 230V AC
- Operating pressure
- 0.25 MPa...1 MPa | 2.5 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- Certicate issuing authority
- DNV-TAA000032X | UL MH19482
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 11 mm
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Valve position ID
- Label holder
- Lap
- Positive overlap
- Switching time off
- 33 ms
- On switching time
- 50 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 3300 µs
