Festo
164077

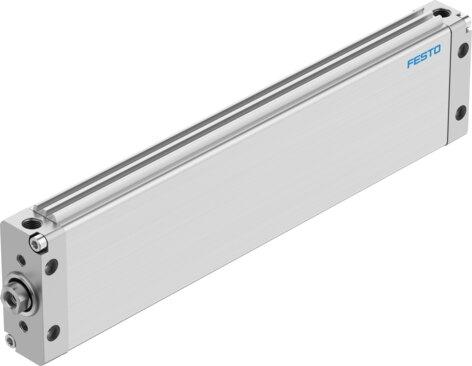

Flat cylinder DZF-50-320-P-A
The Festo part number 164077 is a double-acting industrial component featuring a 50 mm equivalent piston diameter, a 320 mm stroke, and an M10 piston rod thread at one end. Utilizing an oval piston for torsion protection, this unit achieves a maximum rotation angle of plus or minus 0.5 degrees, a maximum anti-rotation torque of 1.2 Nm, and a theoretical retracting force of 990 N at 6 bar operating pressure. It incorporates elastic cushioning rings at both ends, supports any mounting position, allows for position sensing via proximity switch, and operates within a temperature range of -20 °C to 80 °C using compressed air as per ISO 8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 164077
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 164077.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 320 mm
- Piston diameter
- 50 mm | Equivalent diameter
- Piston rod thread
- M10
- Max. angle of rotation of the piston rod +/-
- 0.5 deg
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Protection against torsion/guide
- Oval piston
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.64 J
- Max. torque for protection against rotation
- 1.2 Nm
- Theoretical force at 6 bar, retracting
- 990 N
- Theoretical force at 6 bar, advancing
- 1178 N
- Moving mass at 0 mm stroke
- 219 g
- Additional moving mass per 10 mm stroke
- 25 g
- Additional weight per 10 mm stroke
- 64 g
- Basic weight with 0 mm stroke
- 854 g
- Type of mounting
- Alternatively: | With internal thread | With accessories
- Pneumatic connection
- G1/4
- Cover material
- Die-cast aluminum
