Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

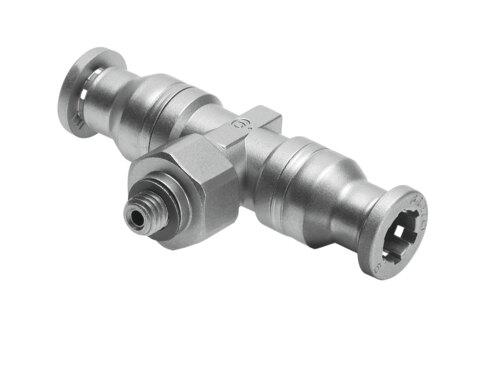

Reference imageConfirm configuration by manufacturer part number.
Festo
164200
Push-in T-fitting CRQST-M5-4
The Festo part number 164200 is a standard-size T-shaped industrial component featuring a 2 mm nominal width, 18 mm tubing insertion depth, and two outlets utilizing the push-pull structural design with a sealing ring on the screwed plug. This component operates across a pressure range of -0.095 MPa to 1 MPa (-0.95 bar to 10 bar, -13.775 psi to 145 psi) for compressed air and water up to 0.6 MPa at 50 °C, accommodating ambient temperatures from -15 °C to 120 °C and lubricated operation. Constructed with a corrosion resistance class of 4 for particularly high corrosion stress and a product weight of 17 g, it requires a nominal tightening torque of 1.33 Nm with a ±20% tolerance in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 164200
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 164200.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 2 mm
- Tubing insertion depth
- 18 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- T-shape
- Pack size
- 1
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -15 °C...120 °C
- Nominal tightening torque
- 1.33 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 17 g
- No. of outlets
- 2
- No. of supply lines
- 1
- Usable connector cables
- PFAN
- Type of mounting
- External hexagon SW10
- Pneumatic connection 1
- External thread M5
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
- Releasing ring color
- Silver
- Material of screwed plug
- high-alloy stainless steel
- Note on materials
- RoHS compliant
- Housing material
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 164200. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
