Festo
164204

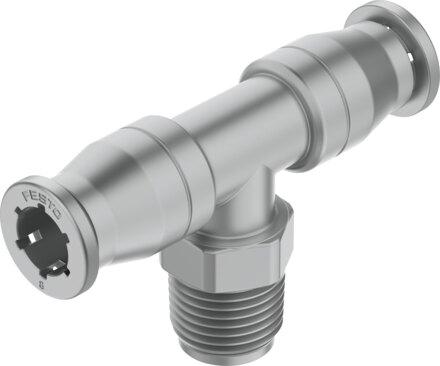

Push-in T-fitting CRQST-1/4-8
The Festo 164204 is a standard T-shaped industrial component featuring a nominal width of 5 mm, a tubing insertion depth of 21.5 mm, and one supply line with two outlets. Built on the push-pull principle, this unit operates across a pressure range of -0.095 MPa to 1 MPa and temperatures from -15 °C to 120 °C using compressed air or liquid water. It provides an external hexagon SW14 mounting type, a corrosion resistance class of 4 for particularly high corrosion stress, and a product weight of 38 g. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 164204
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 164204.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 5 mm
- Tubing insertion depth
- 21.5 mm
- Mounting position
- Any
- Design
- T-shape
- Pack size
- 1
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -15 °C...120 °C
- Product weight
- 38 g
- No. of outlets
- 2
- No. of supply lines
- 1
- Usable connector cables
- PFAN
- Type of mounting
- External hexagon SW14
- Pneumatic connection 1
- External thread R1/4
- Pneumatic connection 2
- for pneumatic tubing outside diameter 8 mm
- Releasing ring color
- Silver
- Material of screwed plug
- high-alloy stainless steel
- Note on materials
- RoHS compliant
- Housing material
- high-alloy stainless steel
- Releasing ring material
- high-alloy stainless steel
- Material of tubing seal
- FPM
- Material of tube retaining claw
- high-alloy stainless steel
