Festo
164207

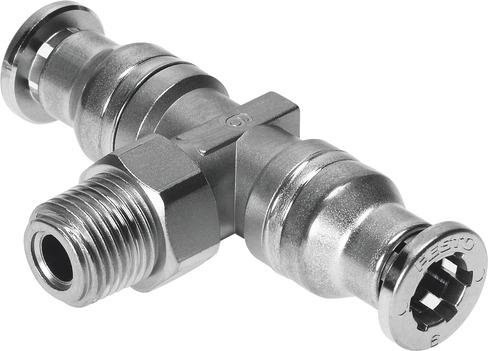

Push-in T-fitting CRQST-3/8-12
The Festo part number 164207 is a T-shaped industrial component featuring a nominal width of 8.1 mm, one supply line, two outlets, and an external thread R3/8 pneumatic connection utilizing the push-pull principle. It operates across a pressure range of -0.095 MPa to 1 MPa for compressed air and up to 0.6 MPa for water at a maximum of 50 °C, within an ambient temperature range of -15 °C to 120 °C. Designed with a standard size and external hexagon AF 21 mounting type, this unit achieves corrosion resistance class 4 and supports oil lubrication and PFAN usable connector cables. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 164207
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 164207.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 8.1 mm
- Mounting position
- Any
- Design
- T-shape
- Pack size
- 1
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Operation with oil lubrication possible
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -15 °C...120 °C
- Product weight
- 85 g
- No. of outlets
- 2
- No. of supply lines
- 1
- Usable connector cables
- PFAN
- Type of mounting
- External hexagon, AF 21
- Pneumatic connection 1
- External thread R3/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 12 mm
- Material of screwed plug
- High-alloy stainless steel
- Note on materials
- RoHS-compliant
- Housing material
- High-alloy stainless steel
- Releasing ring material
- High-alloy stainless steel
- Material of tubing seal
- FPM
- Material of tube retaining claw
- High-alloy stainless steel
- Thrust ring material
- High-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 164207. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
