Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

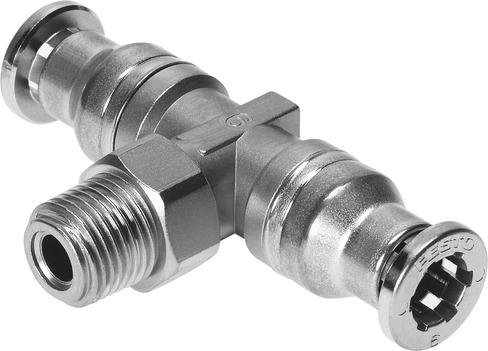

Reference imageConfirm configuration by manufacturer part number.
Festo
164208
Push-in T-fitting CRQST-1/2-12
The Festo 164208 is a standard T-shaped industrial component featuring an 8.1 mm nominal width, one supply line, two outlets, and an external hexagon AF 22 mounting type with an R1/2 external thread for pneumatic connection 1. Utilizing a push-pull structural design, this part operates across an entire temperature range of -15 °C to 120 °C and handles pressures from -0.095 MPa to 1 MPa using compressed air or liquid, ice-free water. It is rated for a corrosion resistance class of 4, features VDMA24364-B1/B2-L LABS conformity, weighs 105 g, and can be mounted in any position with PFAN usable connector cables and optional oil lubrication. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 164208
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 164208.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 8.1 mm
- Mounting position
- Any
- Design
- T-shape
- Pack size
- 1
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Operation with oil lubrication possible
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -15 °C...120 °C
- Product weight
- 105 g
- No. of outlets
- 2
- No. of supply lines
- 1
- Usable connector cables
- PFAN
- Type of mounting
- External hexagon, AF 22
- Pneumatic connection 1
- External thread R1/2
- Pneumatic connection 2
- for pneumatic tubing outside diameter 12 mm
- Material of screwed plug
- High-alloy stainless steel
- Note on materials
- RoHS-compliant
- Housing material
- High-alloy stainless steel
- Releasing ring material
- High-alloy stainless steel
- Material of tubing seal
- FPM
- Material of tube retaining claw
- High-alloy stainless steel
- Thrust ring material
- High-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 164208. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
