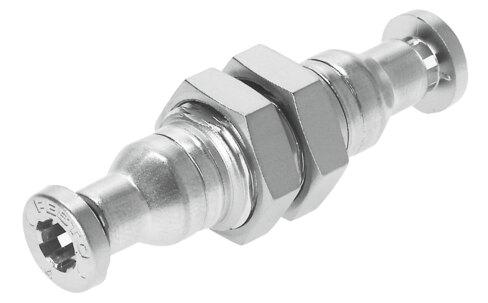

Reference imageConfirm configuration by manufacturer part number.
Festo
164217
Push-in bulkhead connector CRQSS-12
The Festo 164217 is a standard bulkhead industrial component featuring a 7.9 mm nominal width, a 27 mm tubing insertion depth, and a push-pull structural design for 12 mm outside diameter pneumatic tubing on both connections. Built for any mounting position with a silver releasing ring and weighing 87 g, it operates within a pressure range of -0.95 bar to 10 bar and temperatures from -15 °C to 120 °C using compressed air or liquid water. This unit provides CRC 4 corrosion resistance, VDMA24364-B1/B2-L LABS conformity, and is compatible with PFAN usable connector cables and lubricated operation. Submit part number 164217 with your required quantity and application specifications to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 164217
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 164217.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 7.9 mm
- Tubing insertion depth
- 27 mm
- Mounting position
- Any
- Design
- Bulkhead
- Pack size
- 1
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -15 °C...120 °C
- Product weight
- 87 g
- Usable connector cables
- PFAN
- Pneumatic connection 1
- for pneumatic tubing outside diameter 12 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 12 mm
- Releasing ring color
- Silver
- Note on materials
- RoHS compliant
- Housing material
- high-alloy stainless steel
- Releasing ring material
- high-alloy stainless steel
- Nut material
- high-alloy stainless steel
- Material of tubing seal
- FPM
- Material of tube retaining claw
- high-alloy stainless steel
- Thrust ring material
- high-alloy stainless steel
