Name: Festo 164254 Connecting cable SIM-K-WD-5-PU
Brand: Festo

Connecting cable SIM-K-WD-5-PU

The Festo part number 164254 is an industrial component featuring an angled M8 snap-locking A-coded socket with 3 pins on the field device end and an open-ended 3-wire cable on the control side. This assembly operates within an AC and DC voltage range of 0 V to 60 V, supports a current rating of 3 A at 40° C, and provides a surge resistance of 1.5 kV with a contact durability of 100. Wire colors and connection numbers conform to EN 60947-5-2, EN 61076-2-104, and EN 61984 standards, while the cable designation excludes a label holder. Submit the exact part number, quantity, and application requirements to receive a quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 164254
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 164254.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Conforms to standard: Wire colors and connection numbers as per EN 60947-5-2 | EN 61076-2-104 | EN 61984
Cable designation: Without label holder
Contact durability: 100
Electrical connection 1, function: Field device end
Electrical connection 1, design: Round
Electrical connection 1, connection type: Socket
Electrical connection 1, cable outlet: Angled

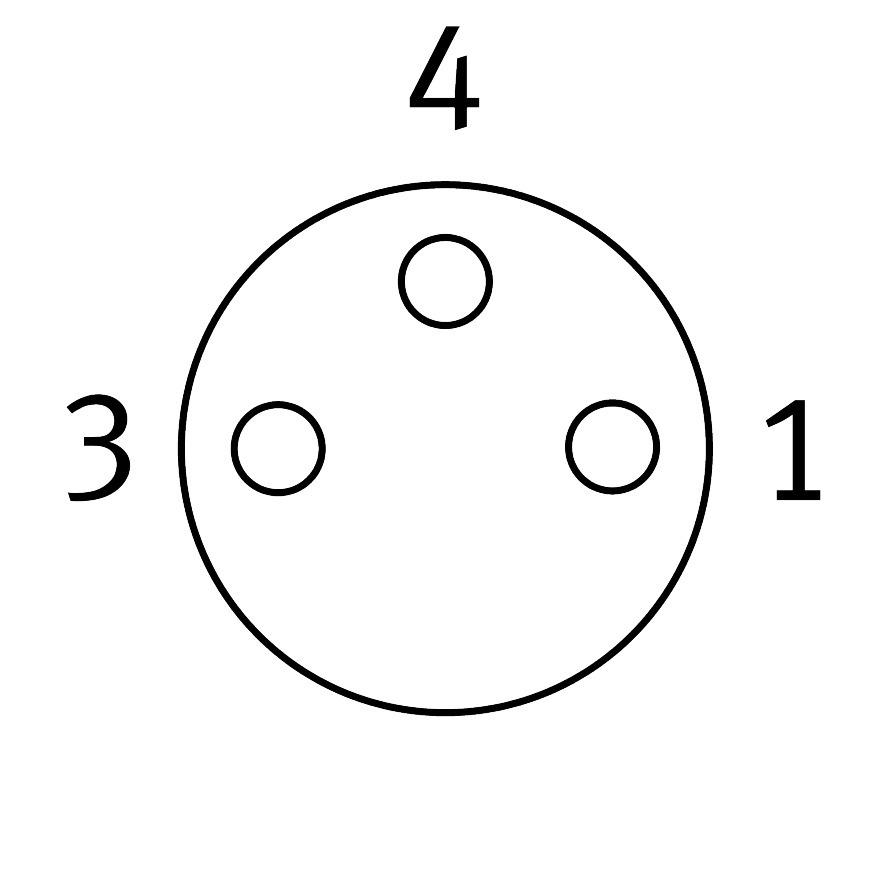

Electrical connection 1, connection technology: M8 snap-locking A-coded as per EN 61076-2-104
Electrical connection 1, number of pins/wires: 3
Electrical connection 1, occupied pins/wires: 3
Electrical connection 1, type of mounting: Snap-locking
Electrical connection 2, function: Control side
Electrical connection 2, connection type: Cable
Electrical connection 2, connection technology: Open end
Electrical connection 2, number of pins/wires: 3
Electrical connection 2, occupied pins/wires: 3
DC operating voltage range: 0 V...60 V
Operating voltage range AC: 0 V...60 V
Current rating at 40° C: 3 A
Surge resistance: 1.5 kV
Cable length: 5 m
Cable characteristic: Standard
Connector cable test conditions: Flexural strength: as per Festo standard | Test conditions on request | Energy chain > 5 million cycles, bending radius 28 mm
Bending radius, xed cable installation: 23 mm
Bending radius, exible cable installation: 46 mm
Cable diameter: 4.5 mm
Cable diameter tolerance: ± 0.1 mm

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 164254. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
