Festo
1646747

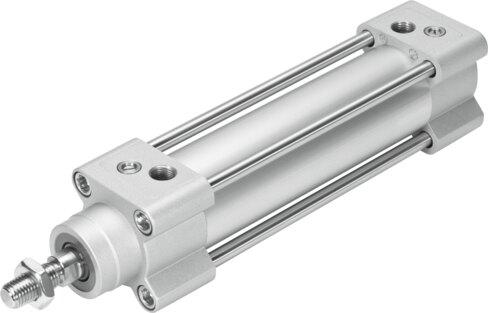

ISO cylinder DSBG-63-200-PPVA-N3
The Festo 1646747 is a double-acting industrial component featuring a 63 mm piston diameter, a 200 mm stroke, and an M16x1.5 piston rod thread with an external thread at one end. Built with a structural design comprising a piston, piston rod, tie rod 1, and cylinder barrel, this ISO 15552-conforming unit operates within a pressure range of 0.04 MPa to 1.2 MPa (0.4 bar to 12 bar) using compressed air as per ISO 8573-1:2010 [7:4:4]. It is equipped with adjustable pneumatic cushioning at both ends, a 22 mm cushioning length, 1.3 J impact energy in the end positions, position sensing via proximity switch, and a theoretical retracting force of 1682 N at 6 bar. Designed for any mounting position across an ambient temperature range of -20 °C to 80 °C, the assembly exhibits a corrosion resistance class of CRC 2 and VDMA24364-B1/B2-L LABS conformity, supporting oil-lubricated operation where required. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1646747
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1646747.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 200 mm
- Piston diameter
- 63 mm
- Piston rod thread
- M16x1.5
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.04 MPa...1.2 MPa | 0.4 bar...12 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 1.3 J
- Cushioning length
- 22 mm
- Theoretical force at 6 bar, retracting
- 1682 N
- Theoretical force at 6 bar, advancing
- 1870 N
- Moving mass
- 930 g
- Moving mass at 0 mm stroke
- 430 g
- Additional moving mass per 10 mm stroke
- 25 g
- Product weight
- 2840 g
- Basic weight with 0 mm stroke
- 1740 g
- Additional weight per 10 mm stroke
- 55 g
- Type of mounting
- Alternatively: | With internal thread
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1646747. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
