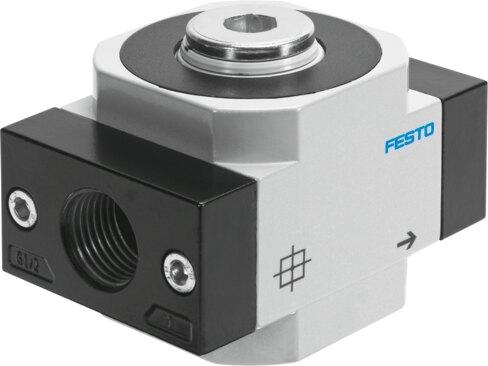

Reference imageConfirm configuration by manufacturer part number.
Festo
164953
Branching module FRM-1/2-D-MIDI
The Festo 164953 is a branching module featuring a die-cast aluminum housing and a standard nominal flow rate of 8200 l/min in the main flow direction from 1 to 2. It accommodates G1/2 pneumatic connections 1, 2, and 3 alongside a G1/4 pneumatic connection 4, operating within a pressure range of 0 bar to 16 bar for compressed air and inert gases. This RoHS-compliant component offers a moderate corrosion stress rating of CRC 2, VDMA24364-B1/B2-L LABS conformity, and an overall product weight of 502 g for any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 164953
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 164953.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Structural design
- Branching module
- Operating pressure
- 0 MPa...1.6 MPa | 0 bar...16 bar
- Standard nominal ow rate in main ow direction 1 -> 2
- 8200 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Inert gases
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 °C...60 °C
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Inert gases
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 502 g
- Pneumatic connection 1
- G1/2
- Pneumatic connection 2
- G1/2
- Pneumatic connection 3
- G1/2
- Pneumatic connection 4
- G1/4
- Note on materials
- RoHS compliant
- Housing material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 164953. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
