Festo
164972

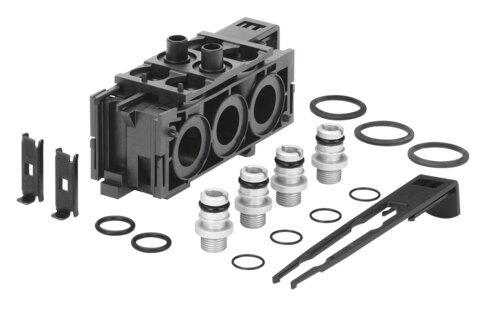

Manifold block CPE18-PRSE-2
The Festo 164972 industrial component is an unvalued sub-base mounting unit designed for a maximum of 2 valve positions with G1/2 pneumatic connection 1. Built with a PA-reinforced housing and compliant with RoHS material standards, this 145 g assembly features a CRC 2 moderate corrosion stress rating and VDMA24364-B1/B2-L LABS conformity. It utilizes compressed air as per ISO 8573-1:2010 [7:4:4] as an operating medium, where operation with oil lubrication is possible and required for further use, and mounts via through-hole or DIN rail. Submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 164972
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 164972.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Max. no. of valve positions
- 2
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 145 g
- Sub-base mounting type
- With through-hole | With DIN rail
- Pneumatic connection 1
- G1/2
- Note on materials
- RoHS compliant
- Housing material
- PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 164972. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
