Festo
165004

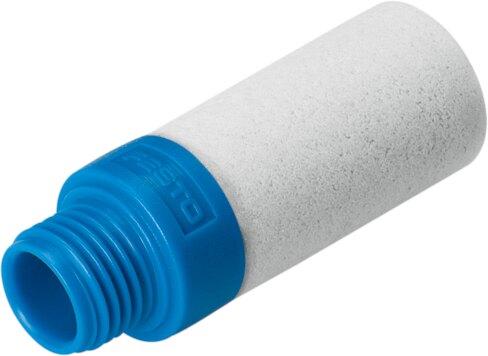

Pneumatic muffler UC-1/4
The Festo 165004 is an industrial component featuring a G1/4 pneumatic connection, a pack size of 1, and a product weight of 5.2 g with RoHS-compliant materials. It operates within a pressure range of 0 MPa to 1 MPa (0 bar to 10 bar), delivers an atmospheric flow rate of 3200 l/min, and maintains a noise level of 60 dB(A) across an ambient temperature range of -10 °C to 70 °C. Designed for any mounting position, this part utilizes compressed air as per ISO 8573-1:2010 [7:-:-] and allows for lubricated operation. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 165004
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 165004.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Pack size
- 1
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Flow rate with respect to atmosphere
- 3200 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Noise level
- 60 dB(A)
- Ambient temperature
- -10 °C...70 °C
- Product weight
- 5.2 g
- Pneumatic connection
- G1/4
- Cushioning insert material
- Protective grounding
- Material of screwed plug
- Protective grounding | PP
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 165004. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
